Crawler scissor lift with outriggers with 8m working height
✓ Hydraulic outriggers for superior stability ✓ 8.0 m working height / 6.0 m platform height ✓ 230kg rated capacity (with outriggers) ✓ 24V DC, 4 x 12V 115Ah AGM battery ✓ 30% gradeability ✓ 0 m turning radius / zero tail‑swing ✓ CE certified / ISO9001

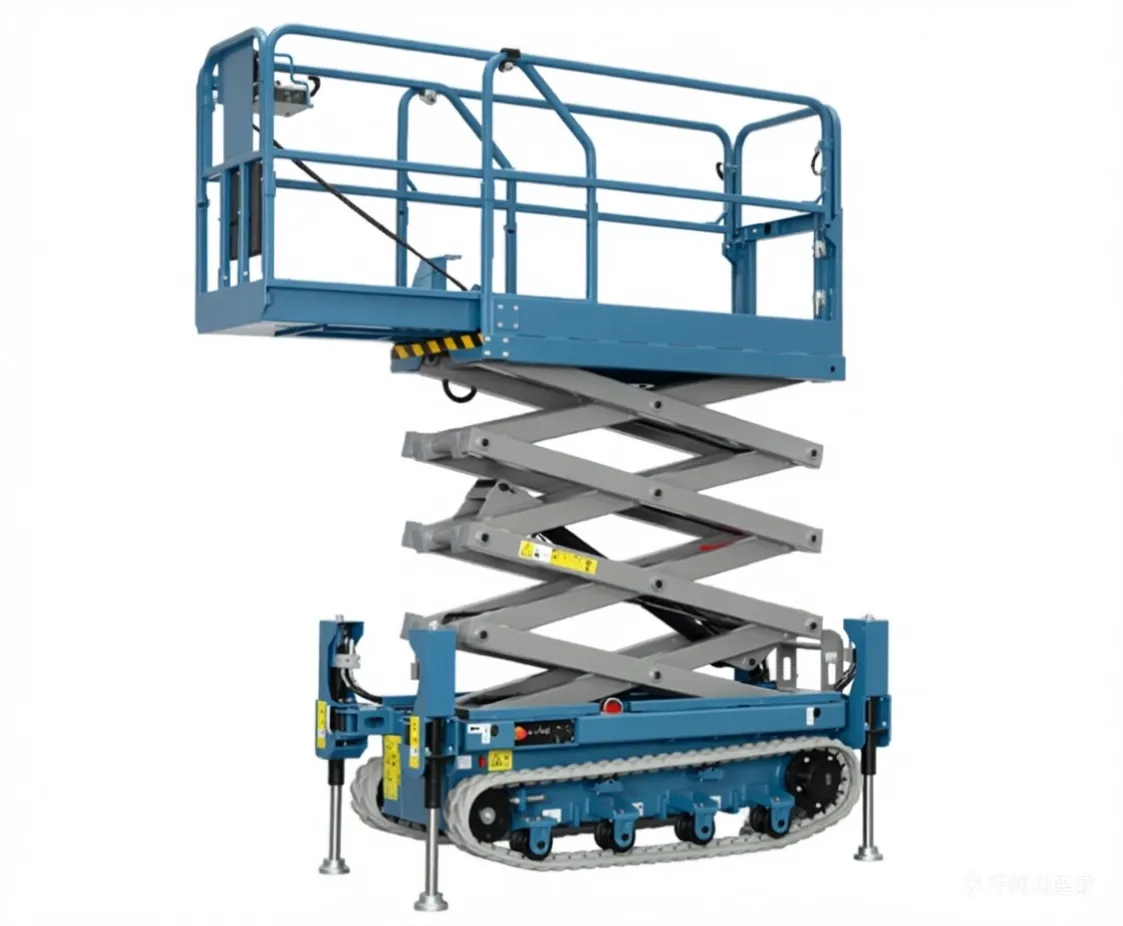

Outstrip 0610TL Crawler Scissor Lift with Hydraulic Outriggers
The Outstrip 0610TL is a premium crawler scissor lift with hydraulic outriggers, engineered to overcome the limitation that conventional aerial lifts can only operate on slab ground. The combination of a robust tracked chassis and hydraulic outriggers delivers unparalleled stability on slopes, mud, and uneven construction sites where wheeled lifts cannot venture. With a maximum working height of 8.0 metres (6.0m platform height) and a rated capacity of 230 kg when outriggers are deployed (200 kg without outriggers), this compact crawler lift offers exceptional versatility for both quick moves and heavy‑duty lifting. Powered by a maintenance‑free 24V AGM battery system (4 × 12V 115Ah) paired with high‑efficiency AC drive motors, the 0610TL delivers clean, quiet, zero‑emission operation ideal for indoor warehouses, hospitals, and noise‑sensitive urban environments. The automatic leveling outriggers significantly widen the machine's support footprint, ensuring the platform remains perfectly level and secure even at full extension on uneven ground. With 30% gradeability, zero turn radius, and true zero tail swing, this CE‑certified crawler aerial platform is the ultimate solution for accessing challenging job sites where stability and manoeuvrability are paramount.
⭐ Key Highlights
- ✓ Hydraulic outriggers for superior stability on slopes and uneven terrain
- ✓ 8.0 m working height / 6.0 m platform height
- ✓ 230 kg rated capacity (with outriggers deployed)
- ✓ 24V DC – 4 × 12V 115Ah AGM battery (maintenance‑free)
- ✓ 30% gradeability – tackles slopes with confidence
- ✓ 0 m turning radius – true zero tail swing and zero inside turning radius
- ✓ CE certified / ISO9001 – complete safety suite
📋 Technical Specifications – 0610TL
| 📐 Dimensions | |
| Model | 0610TL |
| Type | Crawler Scissor Lift — with hydraulic outriggers |
| Max. Working Height (A) | 8.0 m / 26.2 ft |
| Max. Platform Height (B) | 6.0 m / 19.7 ft |
| Overall Length (Stowed) | 2.27 m / 89.4 in |
| Overall Width (C) | 0.98 m / 38.6 in |
| Overall Height (Guardrails unfolded) (D) | 2.14 m / 84.3 in |
| Overall Height (Guardrails folded) | 1.67 m / 65.7 in |
| Platform Length (Stowed) | 1.80 m / 70.9 in |
| Max. Horizontal Reach (Extension) (E) | 0.89 m / 35.0 in |
| ⚖️ Weight | |
| Overall Weight | 1,875 kg / 4,134 lbs |
| ⚡ Performance | |
| Max. Platform Occupancy (Indoor) | 2 persons |
| Max. Platform Occupancy (Outdoor) | 2 persons / 1 person (site‑dependent) |
| Lift Capacity (without outriggers deployed) | 200 kg / 441 lbs |
| Lift Capacity (with outriggers deployed) | 230 kg / 507 lbs |
| Lift Capacity (Extension deck) | 120 kg / 265 lbs |
| Driving Height | No driving when platform is raised |
| Gradeability | 30% |
| Turning Radius (Inside) | 0 m |
| Turning Radius (Outside) | 0 m (true zero tail swing) |
| Maximum Working Inclination Angle | 1.5° / 2° |
| 🔋 Power | |
| Power System | 24V DC (4 × 12V 115Ah AGM maintenance‑free battery) |
| Drive Motors | High‑efficiency AC drive motors |
🔧 Engineered for Extreme Stability – Outriggers + Tracked Mobility
- 🦾 Hydraulic Outriggers – Ultimate Stability – The adjustable hydraulic outriggers significantly widen the machine's support footprint, ensuring safe, rock‑solid operation on slopes, gravel, mud, and irregular surfaces. Equipped with automatic leveling function, the machine can be adjusted to a level position with one‑button operation. With outriggers deployed, the lift capacity increases to 230 kg, allowing operators to focus on the task at hand without any wobble or tipping risk.
- 🐾 Robust Crawler Chassis – Rubber tracks provide low ground pressure and eco‑friendly, mark‑free operation — causing zero damage to ground surfaces. The crawler design overcomes the slab‑ground limitation, granting access to sites where conventional wheeled lifts simply cannot go. 30% gradeability tackles slopes with confidence.
- ⚡ AC Drive + AGM Maintenance‑Free Battery – Maintenance‑free AGM batteries (24V DC, 4×12V 115Ah) paired with high‑efficiency AC drive motors ensure long runtime, quiet operation, and zero emissions — ideal for indoor warehouses, hospitals, and noise‑sensitive urban areas.
- 🔄 Zero‑Turn Radius & Compact Footprint – Despite the outriggers, the machine maintains an ultra‑compact width of just 0.98 m and true zero inside/outside turning radius, offering superb manoeuvrability in confined job sites such as narrow aisles, doorways, and greenhouses.
- 🛡️ Complete Safety Suite (CE Compliant) – Emergency stop (platform + ground), emergency lowering, overload protection, tilt level sensor, descent protection alarm, motion alarm + horn, dual flashing beacons, automatic braking system, and fault diagnosis system — all standard. The outrigger interlock ensures the platform cannot be raised unless outriggers are correctly deployed.
- 🔧 Low Maintenance & Foldable Design – Self‑lubricating bearings reduce service intervals, while the foldable guardrail reduces stowed height to just 1.67 m for easy transport and storage. Manual braking release and hour meter simplify daily inspections.
✅ Standard Equipment & Safety Features
- Emergency stop (platform + ground)
- Emergency lowering system
- Overload protection & alarm
- Descent protection & alarm
- Tilt level protection (visual + audible)
- Safety arm
- Motion alarm & horn
- Dual flashing beacons
- Hour meter + fault diagnosis system
- Automatic braking system
- Half‑height swing gate
- Charger protection
- Proportional control (lift/drive)
- Foldable guardrail
- Manual braking release
- Self‑lubricating bearings
- Hydraulic outriggers with automatic leveling
🔹 Optional Upgrades & Customisation
- Overhead anti‑collision device
- Air line to platform
- Pipe cradle pair
- AC power on the platform (230V)
- Foot pedal switch
- Platform LED work light
- Cold‑weather battery kit
- Custom machine colour / branding
- Air switch protection
🏢 Primary Applications for Outrigger‑Equipped Crawler Lifts
✅ Why the 0610TL Outperforms Conventional Scissor Lifts
- Hydraulic outriggers – deployable stabilisers that significantly widen the support footprint for rock‑solid stability on slopes and uneven ground
- Dual load rating – 200 kg for quick moves without outriggers, 230 kg for heavy‑duty lifting with outriggers deployed
- True zero tail swing – 0 m turning radius (inside and outside) for exceptional manoeuvrability in tight spaces
- Low ground pressure – rubber tracks protect finished surfaces and soft terrain while providing 30% gradeability
- Zero emissions & quiet operation – AGM battery + AC drive motors for indoor and noise‑sensitive environments
- Compact footprint – just 0.98 m wide and 1.67 m folded height for easy transport and storage
- Outrigger interlock – platform cannot be raised unless outriggers are correctly deployed, ensuring operator safety
❓ Frequently Asked Questions
The 0610TL combines a crawler chassis with hydraulic outriggers, allowing it to operate on slopes, mud, and uneven terrain where conventional slab‑specific lifts cannot function. The outriggers provide extreme stability and increase the lift capacity to 230 kg.
With outriggers deployed, the capacity is 230 kg. Without outriggers (for quick moves), the capacity is 200 kg. The outrigger interlock ensures the platform cannot be raised unless outriggers are correctly deployed.
Yes. The AGM battery and AC drive motors provide zero emissions and quiet operation, making it ideal for indoor warehouses, hospitals, museums, and other noise‑sensitive environments.
The 0610TL features true zero turning radius (0 m inside and outside) with zero tail swing, offering exceptional manoeuvrability in narrow aisles, doorways, and confined job sites.
Standard safety features include emergency stops (platform and ground), emergency lowering, overload protection, tilt level protection, descent alarm, motion alarm, flashing beacons, automatic braking, outrigger interlock, and fault diagnosis system.
Yes. The 0610TL is CE certified and ISO9001 compliant, meeting international safety standards for aerial work platforms.
