Crawler Scissor Lift Without Outriggers with working height 8m
Max Working Height: 8.0 m (26.2 ft) Overall Width: 0.98 m (38.6 in) Lift Capacity: 200 kg (440 lbs) Gradeability: 30% Weight (unladen): 1,640 kg (3,616 lbs)

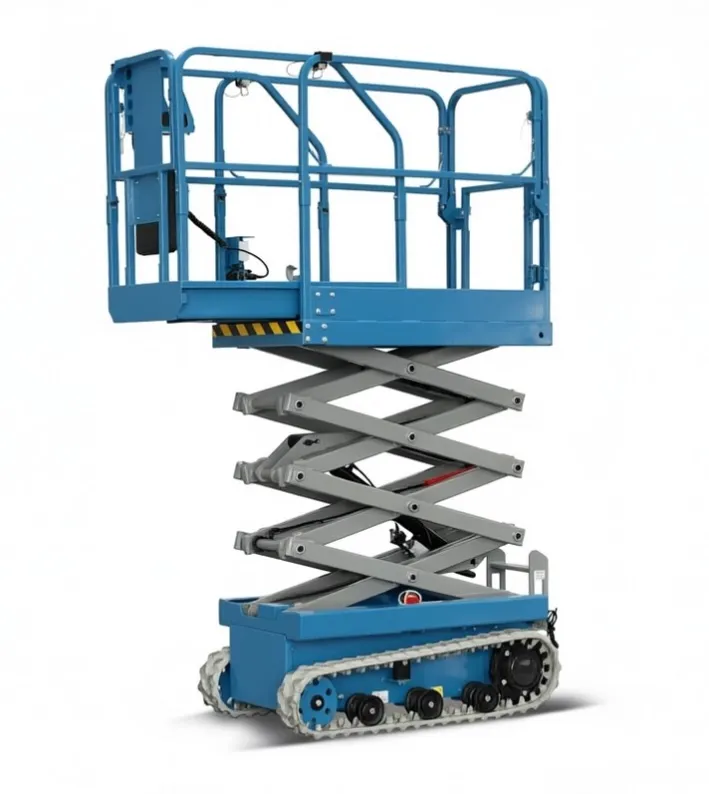

No Outriggers Outstrip 0610T Crawler Scissor Lift – Zero Tail‑Swing · 8.0m Working Height
The Outstrip 0610T is a next‑generation crawler scissor lift without outriggers that redefines access on uneven ground. While conventional aerial lifts require solid slab surfaces, the tracked undercarriage distributes weight evenly, providing superior traction on gravel, mud, or grass – and thanks to a counterweighted chassis design, no outriggers are needed during operation. With a maximum working height of 8.0 metres (6.0m platform height) and a rated capacity of 200 kg, this intelligent compact tracked lift allows workers to reach elevated tasks safely and productively. Powered by high‑efficiency AC drive motors and maintenance‑free AGM batteries (24V DC, 4 × 12V 115Ah), the 0610T delivers quiet, emission‑free performance for indoor warehouses, hospitals, and outdoor construction sites. The ultra‑narrow width of 0.98 metres and zero tail‑swing ensure easy access through doorways, narrow aisles, and congested job sites. With 30% gradeability and true zero turning radius, this CE‑certified crawler aerial platform is the ultimate solution for harsh outdoor sites, narrow passageways, and emission‑sensitive indoor applications.
✅ Why Choose the 0610T? | Crawler · No Outriggers · All‑Surface Stability
- 🐾 True All‑Terrain Rubber Tracks – Rubber crawler tracks provide low ground pressure and excellent traction on grass, mud, gravel, and sloped surfaces. The 0610T climbs grades up to 30%, letting you work wherever the job takes you without conventional outriggers.
- ⚖️ Zero Outriggers – Instant Setup – The counterweighted chassis eliminates the need for bulky outriggers. Operators save time, reduce space requirements, and increase daily workflow efficiency – no stabiliser deployment or recalibration.
- ⚡ AC Drive + AGM Battery – Efficient AC drive motors maximise runtime while maintenance‑free AGM batteries deliver silent, emission‑free operation – ideal for indoor facilities, hospitals, and noise‑sensitive urban environments.
- 🏙️ Ultra‑Compact & Zero Tail‑Swing – With 0.98 m width and zero turning radius, the 0610T navigates doorways, narrow aisles, and congested job sites effortlessly. Folding guardrails reduce transport height to 1.67 m.
- 🛡️ Comprehensive Safety Suite – Emergency stop (platform+ground), emergency lowering, overload protection, tilt level sensor, descent alarm, motion alarm, flashing beacons, fault diagnosis, proportional controls – all CE‑compliant for global job sites.
- 🔄 Low Maintenance & Self‑Lubrication – Self‑lubricating bearings reduce service intervals and extend component life. Foldable guardrails, manual braking release, and hour meter simplify daily inspections.
📋 Technical Specifications – 0610T
| 📐 Dimensions | |
| Model | 0610T |
| Type | Crawler Scissor Lift | Without Outriggers |
| Max. Working Height (A) | 8.0 m (26 ft 3 in) |
| Max. Platform Height (B) | 6.0 m (19 ft 8 in) |
| Overall Length (Stowed) | 2.05 m (80.7 in) |
| Overall Width (D) | 0.98 m (38.6 in) |
| Overall Height (Guardrails unfolded) | 2.14 m (84.3 in) |
| Overall Height (Guardrails folded) | 1.67 m (65.7 in) |
| Platform Length (Stowed) | 1.80 m (70.9 in) |
| Platform Width | 0.78 m (30.7 in) |
| Max. Horizontal Reach (Extension deck) | 0.89 m (35 in) |
| ⚖️ Capacity & Weight | |
| Lift Capacity (Main platform) | 200 kg (440 lbs) |
| Lift Capacity (Extension deck) | 120 kg (265 lbs) |
| Overall Weight | 1,640 kg (3,616 lbs) |
| ⚡ Performance | |
| Gradeability | 30% |
| Max. Working Inclination Angle | 1.5° / 2° |
| Turning Radius (Inside / Outside) | 0 / 0 m (true zero tail swing) |
| Max. Platform Occupancy (Indoor) | 2 persons |
| Max. Platform Occupancy (Outdoor) | 1 person |
| Driving Height | No driving when platform elevated |
| 🔋 Power | |
| Power System | 24V DC (4 × 12V 115Ah AGM batteries) |
| Drive Motors | Efficient AC drive motors |
✅ Standard Equipment & Safety Features
- Emergency stop (platform + ground)
- Emergency lowering system
- Overload protection
- Descent protection & alarm
- Tilt level protection (visual + audible)
- Safety arm
- Motion alarm & horn
- Dual flashing beacons
- Hour meter & fault diagnosis
- Automatic braking system
- Half‑height swing gate
- Charger protection
- Proportional control (lift/drive)
- Foldable guardrail
- Manual braking release
- Self‑lubricating bearings
🔹 Optional Equipment & Upgrades
- Overhead anti‑collision device
- Air line to platform
- Pipe cradle pair
- AC power on platform
- Foot pedal switch
- Platform LED work light
- Customisable machine colour
- Air switch protection
🏢 Key Applications & Industries
📊 0610T vs 0610TL – Which One Is Right for You?
Outstrip offers two crawler scissor lift variants to match different job site requirements:
- 0610T (No Outriggers) – Ideal for quick setup, indoor/outdoor versatility, and jobs where outrigger deployment would slow workflow. Counterweighted chassis provides all‑surface stability without outriggers. Compact width of 0.98m and 200kg capacity. Perfect for construction, landscaping, and facility maintenance.
- 0610TL (With Hydraulic Outriggers) – Designed for extreme slopes and uneven terrain where maximum stability is required. Outriggers provide additional support and increase capacity to 230kg. Best for hillside projects, refineries, and bridge maintenance.
💡 Recommendation: Choose the 0610T for fast‑paced jobs requiring frequent repositioning and maximum manoeuvrability. Choose the 0610TL for challenging terrain where outrigger‑assisted stability is essential.
❓ Frequently Asked Questions
The 0610T combines a crawler chassis with a counterweighted design that eliminates the need for outriggers. Unlike conventional slab‑specific lifts, it operates on gravel, mud, grass, and slopes while maintaining stability without stabiliser deployment.
The 0610T is designed for quick setup and maximum manoeuvrability without outriggers (200kg capacity, 0.98m width). The 0610TL features hydraulic outriggers for extreme slopes and uneven terrain, with a higher capacity of 230kg when outriggers are deployed.
Yes. The AGM battery and AC drive motors provide zero emissions and quiet operation, making it ideal for indoor warehouses, hospitals, museums, schools, and shopping centres.
The 0610T features true zero turning radius (0 m inside and outside) with zero tail swing, offering exceptional manoeuvrability in narrow aisles, doorways, and congested job sites.
Standard safety features include emergency stops (platform and ground), emergency lowering, overload protection, tilt level protection, descent alarm, motion alarm, flashing beacons, automatic braking, and fault diagnosis system – all CE compliant.
Yes. The 0610T is CE certified and meets ANSI and AS1418 standards, ensuring compliance with international safety requirements for aerial work platforms.
CE · ANSI · AS1418 compliant · OEM customisation available · Global shipping
