Crawler Scissor Lifts | Hydraulic Outriggers for Extreme Stability
✓ Outrigger‑assisted ultra stability ✓ 8.0 – 13.8 m working height ✓ 320 – 550 kg rated capacity ✓ 48V DC, 8 x 6V 220Ah battery ✓ 30% gradeability ✓ 0‑turn radius / zero tail‑swing ✓ CE / ISO certified

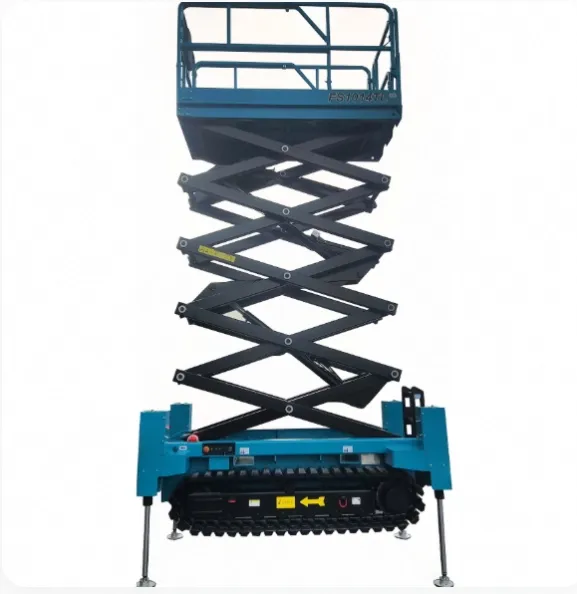

Series Outstrip 0614TL–1214TL Crawler Scissor Lifts with Hydraulic Outriggers
The Outstrip 0614TL–1214TL Series represents the ultimate crawler scissor lift with hydraulic outriggers, engineered to work where paved roads end. Designed to overcome the limitation that conventional aerial lifts can only operate on slab ground, this range combines a robust tracked chassis with hydraulic outriggers to deliver unequalled stability on slopes, mud, and uneven construction sites. With maximum working heights ranging from 8.0 to 13.8 metres and rated capacities from 320 to 550 kg (with outriggers deployed), the series offers exceptional versatility for heavy‑duty aerial work. Powered by a 48V DC system with 8 × 6V 220Ah AGM maintenance‑free batteries and high‑efficiency AC drive motors, these crawler lifts deliver quiet, zero‑emission operation ideal for both indoor precision work and outdoor demanding environments. The automatic leveling outriggers significantly widen the machine's support footprint, ensuring the platform remains perfectly level and secure even at full extension on slopes up to 0.5° working inclination. With 30% gradeability, zero turning radius, and true zero tail swing, this CE‑certified series sets a new industry benchmark for safety, reach, and manoeuvrability on the world's toughest job sites — from hillside construction projects and refineries to orchards and bridge maintenance.
⭐ Series Highlights
- ✓ Outrigger‑assisted ultra stability – hydraulic outriggers for rock‑solid support on slopes and uneven terrain
- ✓ 8.0 – 13.8 m working height – four models to match your reach requirements
- ✓ 320 – 550 kg rated capacity – with outriggers deployed for heavy‑duty lifting
- ✓ 48V DC – 8 × 6V 220Ah AGM battery (maintenance‑free)
- ✓ 30% gradeability – tackles slopes with confidence
- ✓ 0‑turn radius – true zero tail swing and zero inside turning radius
- ✓ CE / ISO certified – complete safety suite with outrigger interlock
📋 Technical Specifications – Outrigger‑Equipped Crawler Series
| Parameter | 0614TL | 0814TL | 1014TL | 1214TL |
|---|---|---|---|---|
| 📐 Dimensions | ||||
| Type | Crawler Scissor Lift — with hydraulic outriggers | |||
| Max. Working Height (A1) | 8.0 m / 26.2 ft | 9.9 m / 32.5 ft | 11.8 m / 38.7 ft | 13.8 m / 45.3 ft |
| Max. Platform Height (A2) | 6.0 m / 19.7 ft | 7.9 m / 25.9 ft | 9.8 m / 32.2 ft | 11.8 m / 38.7 ft |
| Overall Length (Stowed) | 2.66 m / 104.7 in | |||
| Overall Width | 1.61 m / 63.4 in | |||
| Overall Height (Guardrails unfolded) | 2.29 m | 2.41 m | 2.55 m | 2.67 m |
| Overall Height (Guardrails folded) | 1.77 m | 1.89 m | 2.04 m | 2.15 m |
| Platform Length (Stowed) | 2.25 m / 88.6 in | |||
| Max. Horizontal Reach (Extension) | 0.9 m / 35.4 in | |||
| ⚖️ Weight | ||||
| Overall Weight | 2,835 kg | 3,000 kg | 3,375 kg | 3,900 kg |
| ⚡ Performance | ||||
| Max. Platform Occupancy (Indoor) | 3 persons | |||
| Max. Platform Occupancy (Outdoor) | 3 persons | |||
| Lift Capacity (without outriggers) | — | |||
| Lift Capacity (with outriggers deployed) | 550 kg / 1,213 lbs | 460 kg / 1,014 lbs | 320 kg / 705 lbs | 320 kg / 705 lbs |
| Lift Capacity (Extension deck) | 120 kg / 265 lbs | |||
| Driving while Elevated | No driving when platform is raised | |||
| Gradeability | 30% | |||
| Turning Radius (Inside / Outside) | 0 m / 0 m (zero‑turn capability) | |||
| Max. Working Inclination Angle | 0.5° / 0.5° (with outriggers: leveling on demand) | |||
| 🔋 Power | ||||
| Power System | 48V DC (8 × 6V, 220Ah AGM maintenance‑free battery) | |||
| Drive Motors | High‑efficiency AC drive motors | |||
🔧 Engineered for Extreme Stability – Outriggers + Tracked Mobility
- 🦾 Hydraulic Outriggers – Ultimate Stability – The adjustable outriggers significantly widen the machine's support footprint, ensuring safe, rock‑solid operation on slopes, gravel, mud, and irregular surfaces. With outriggers deployed, lift capacity and overall safety are maximised, allowing operators to focus on the task at hand without wobble or tipping risk.
- 🐾 Robust Crawler Chassis – Rubber tracks distribute weight evenly, providing superior grip and flotation on soft or muddy terrain. The crawler design overcomes the slab‑ground limitation, granting access to sites where conventional wheeled lifts simply cannot go.
- ⚡ 48V AC Drive + AGM Battery – Maintenance‑free AGM batteries (8 × 6V, 220Ah) and efficient AC drive motors ensure long runtime, silent operation, and zero emissions — ideal for indoor warehouses, hospitals, and noise‑sensitive urban areas.
- 🔄 Zero‑Turn Radius & Compact Footprint – Despite the outriggers, the machine maintains an ultra‑compact width of just 1.61 m and zero inside turning radius, offering superb manoeuvrability in confined job sites such as narrow alleys, greenhouses, and refinery pipe racks.
- 🛡️ Complete Safety Suite (CE Compliant) – Emergency stop (platform + ground), emergency lowering, overload protection, tilt level sensor, descent alarm, motion alarm + horn, dual flashing beacons — all standard. The outrigger control interlock ensures the platform cannot be raised unless outriggers are correctly deployed.
- 🔧 Low Maintenance & Self‑Lubricating Bearings – Self‑lubricating bearings reduce service intervals, while the maintenance‑free battery and foldable guardrails simplify daily inspections. Designed for harsh work cycles with minimum downtime.
✅ Standard Equipment & Safety Features
- Emergency stop (platform + ground)
- Emergency lowering system
- Overload protection & alarm
- Descent protection & alarm
- Tilt level protection (visual + audible)
- Safety arm
- Motion alarm & horn
- Dual flashing beacons
- Hour meter + fault diagnosis
- Automatic braking system
- Half‑height swing gate
- Charger protection
- Proportional control (lift/drive)
- Foldable guardrail
- Manual braking release
- Self‑lubricating bearings
- Hydraulic outriggers with automatic leveling
🔹 Optional Upgrades & Customisation
- Overhead anti‑collision device
- Air line to platform
- Pipe cradle pair
- AC power on the platform (230V)
- Foot pedal switch
- LED work light (platform)
- Cold‑weather battery kit
- Custom machine colour / branding
🏢 Primary Applications for Outrigger‑Equipped Crawler Lifts
✅ Why the 0614TL–1214TL Series Outperforms Conventional Lifts
- Hydraulic outriggers – deployable stabilisers that significantly widen the support footprint for rock‑solid stability on slopes and uneven ground
- High capacity range – 320–550 kg with outriggers deployed, supporting up to 3 persons plus tools and materials
- 48V high‑voltage system – 8 × 6V 220Ah AGM batteries deliver extended runtime and superior power efficiency
- True zero tail swing – 0 m turning radius (inside and outside) for exceptional manoeuvrability in tight spaces
- Low ground pressure – rubber tracks protect finished surfaces and soft terrain while providing 30% gradeability
- Zero emissions & quiet operation – AGM battery + AC drive motors for indoor and noise‑sensitive environments
- Outrigger interlock – platform cannot be raised unless outriggers are correctly deployed, ensuring operator safety
- CE, ANSI & AS1418 compliant – meets international safety standards for aerial work platforms
❓ Frequently Asked Questions
The models differ primarily in working height and capacity. The 0614TL offers 8.0m working height with 550kg capacity. The 0814TL offers 9.9m with 460kg capacity. The 1014TL and 1214TL offer 11.8m and 13.8m respectively, each with 320kg capacity. All models feature hydraulic outriggers for extreme stability.
The 0614TL–1214TL series features a 48V battery system (vs 24V), larger platform width (1.61m vs 0.98m), higher capacity (up to 550kg vs 230kg), and greater working heights (up to 13.8m vs 8.0m). It also supports up to 3 persons on the platform.
The 0614TL offers 550kg capacity, the 0814TL offers 460kg, and the 1014TL and 1214TL each offer 320kg. All capacities are with outriggers deployed for maximum stability.
Yes. The 48V AGM battery and AC drive motors provide zero emissions and quiet operation, making it ideal for indoor warehouses, hospitals, museums, and green building refits.
Standard safety features include emergency stops (platform and ground), emergency lowering, overload protection, tilt level protection, descent alarm, motion alarm, flashing beacons, automatic braking, outrigger interlock, and fault diagnosis system.
Yes. The 0614TL–1214TL series is CE certified and meets ANSI and AS1418 standards, ensuring compliance with international safety requirements for aerial work platforms.
Crawler scissor lifts meet CE, ANSI, and AS1418 standards · OEM customisation available
