Boom Lift
FBZ-6T Crawler Type Articulated BOOM LIFT
Compact crawler-type articulated boom lift with rubber tracks for superior rough terrain mobility. Zero tailswing design, low ground pressure, and Kubota diesel engine — built for indoor and outdoor applications requiring exceptional maneuverability on uneven surfaces.
Specifications
- Max Working Height
- 8.3 meter
- Overall Width
- 1.54 meter
- Lifting capacity
- 150 kg
- Turntable Tailswing
- 0 meter
Crawler | Articulated | Zero Tailswing

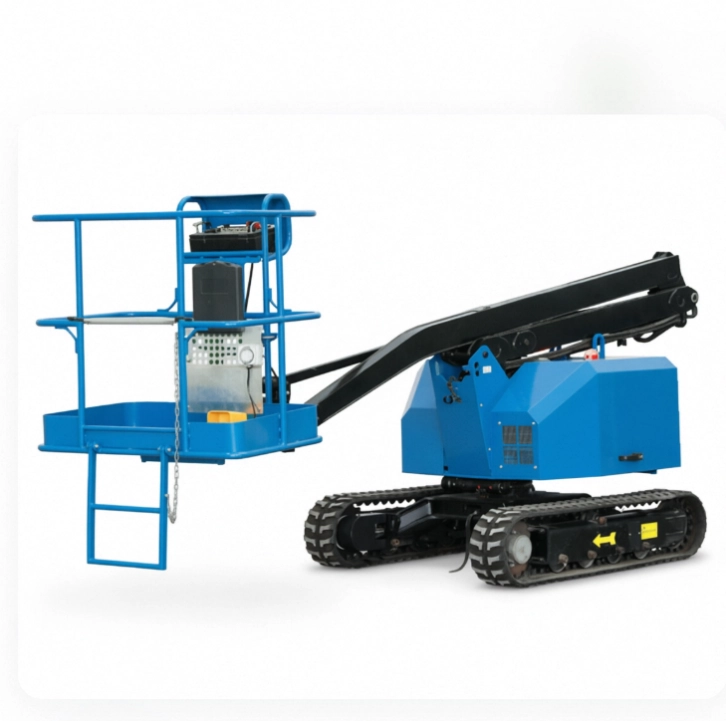

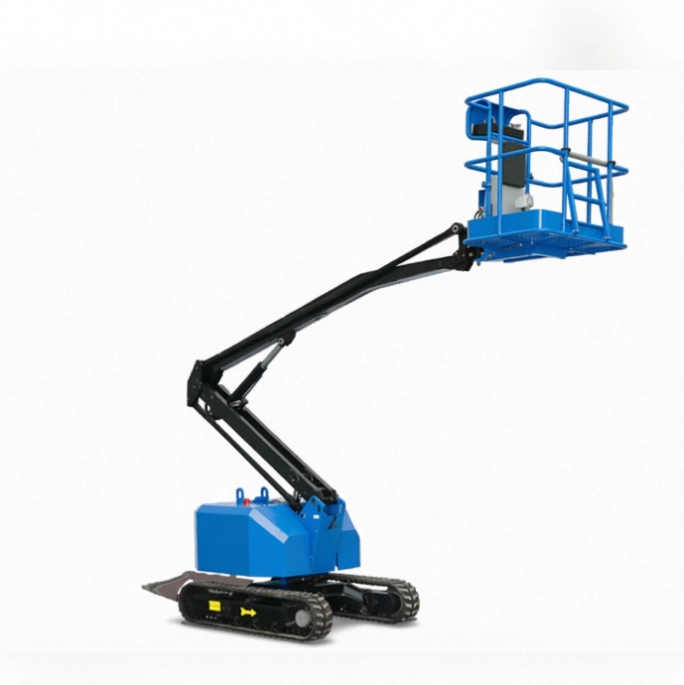

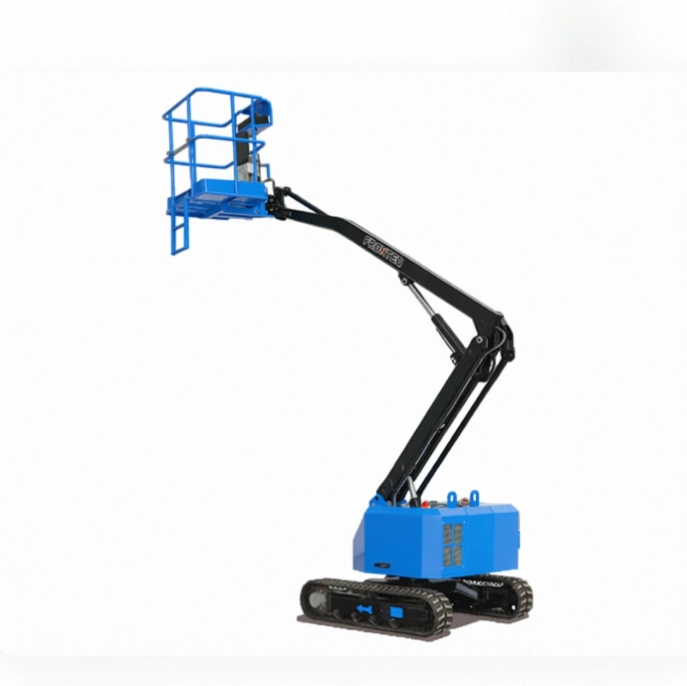

FBZ-6T Crawler Articulated Boom Lift
The articulated crawler boom lifts are equipped with a low-emission and low noise engine, designed for zero tail swing. This range has flexibility and compact size with rubber tracks to make it easy to access through rough ground conditions, climb slopes, and to be transported by trailer. The lightweight offers low ground pressure for smooth, fast and safe passage through different worksite applications. It’s ideal for a variety of jobs both indoors and outdoors.
Key Features & Benefits
Engineered for rugged terrain, compact access, and reliable performance in demanding worksites.
🐛
Rubber Track Crawler System
Continuous rubber tracks provide superior traction on uneven terrain while keeping ground pressure extremely low — protecting finished surfaces while climbing steep grades effortlessly.
🔄
Zero Tailswing Design
Zero turntable tailswing in both raised and stowed positions allows unrestricted 355° rotation in narrow aisles and confined spaces, maximizing accessibility in tight job sites.
⚙️
Kubota D722 Diesel Engine
Powered by a reliable EU Stage III-compliant Kubota D722-E3B engine with 30L fuel tank — delivering low emissions, low noise, and exceptional runtime for outdoor operations.
📦
Compact Transportability
With a stowed length of 4.95m and width of only 1.54m, the FBZ-6T can be easily transported by standard trailer — reducing logistics costs and site-to-site mobilization time.
🛡️
Comprehensive Safety Package
Includes overload protection, tilt level protection, emergency lowering system, automatic braking, and foot pedal switch — delivering maximum operator protection in all conditions.
🔧
Low Maintenance Design
Self-lubricating bearings, fault diagnosis system, and simplified service access reduce downtime and keep your fleet operating at peak efficiency with lower total cost of ownership.
Technical Specifications
Complete dimensional and performance specifications for the FBZ-6T crawler articulated boom lift.
Dimensions | |
|---|---|
Max. Working Height | 8.3 m (27 ft 3 in) |
Max. Platform Height | 6.3 m (20 ft 8 in) |
Max. Horizontal Outreach | 4.2 m (13 ft 9 in) |
Max. Up and Over Clearance | 3.1 m (10 ft 2 in) |
Platform Dimensions (L×W×H) | 1.18 × 0.78 × 1.1 m (46.5 × 30.7 × 43.3 in) |
Length — Stowed (A) | 4.95 m (16 ft 3 in) |
Width — Stowed (B) | 1.54 m (5 ft 1 in) |
Height — Stowed (C) | 2.1 m (6 ft 11 in) |
Shoe Width | 250 × 72 mm |
Performance | |
Platform Capacity | 150 kg (331 lbs) |
Max. Platform Occupancy (Indoor) | 1 person |
Max. Platform Occupancy (Outdoor) | 1 person |
Platform Turning Angle (Left/Right) | 80° / 80° |
Drive Speed — Stowed | 0 – 1.6 km/h (0 – 1.0 mph) |
Drive Speed — Raised | 0 – 0.8 km/h (0 – 0.5 mph) |
Gradeability | 25% (approx. 14°) |
Turntable Rotation | 355° (non-continuous) |
Turning Radius (Inside) | 0 m |
Turning Radius (Outside) | 0 m |
Turntable Tailswing — Raised | 0 m |
Turntable Tailswing — Stowed | 0 m |
Power & Drive | |
Engine Model | Kubota D722-E3B |
Engine Type | EU Stage III compliant / Low-emission diesel |
Fuel Tank Capacity | 30 L (7.9 gal) |
Hydraulic Oil Tank Capacity | 30 L (7.9 gal) |
Drive System | Rubber track crawler· dual drive motors· |
Control Type | Proportional control |
Braking System | Automatic braking system· parking brake· |
Weight | |
Overall Weight | 2,500 kg (5,512 lbs) |
* Specifications are based on standard configurations. Outstrip reserves the right to make changes without prior notice.
✓Standard Equipment
- ✓Foot pedal switch
- ✓Emergency stop
- ✓Emergency lowering
- ✓Overload protection
- ✓Tilt level protection
- ✓Motion alarm
- ✓Flashing beacons
- ✓Horn
- ✓Drive at full height
- ✓Hour meter
- ✓Automatic braking system
- ✓Fault diagnosis system
- ✓Charger protection
- ✓Proportional control
- ✓Self-lubrication bearing
+Optional Upgrades
- +Air line to platform
- +AC power on platform
- +Platform LED work light
- +Custom paint color
- +Pneumatic air switch
Applications
The FBZ-6T crawler boom lift is purpose-built for worksites where terrain challenges traditional equipment.
🌲
Landscaping & Arboriculture
Perfect for tree trimming, pruning, and park maintenance — rubber tracks protect turf while the articulated arm reaches up and over dense foliage without damaging surrounding vegetation.
🏗️
Rough Terrain Construction
Navigate mud, gravel, and uneven ground with confidence. Zero tailswing design enables operation in tight urban job sites where conventional wheeled lifts cannot venture.
🏢
Facility Maintenance
Ideal for indoor applications such as warehouse racking maintenance, factory lighting repair, and HVAC access — low ground pressure protects epoxy and polished concrete floors.
🔌
Utility & Infrastructure
Street lighting maintenance, telecommunications tower access, and electrical line work — the FBZ-6T handles rough roadside conditions with ease.
🏔️
Slope & Hillside Work
With 25% gradeability and rubber track traction, this lift climbs inclines that stop conventional boom lifts — ideal for hillside residential projects and embankment access.
🚚
Rental Fleet Operations
Robust construction, easy service access, and low ground pressure for sensitive surfaces make the FBZ-6T an excellent addition to any rental fleet serving diverse customer needs.
Frequently Asked Questions
Common questions about the FBZ-6T crawler articulated boom lift.
- ❓ What makes the FBZ-6T different from wheeled boom lifts? Rubber tracks provide superior traction on uneven terrain, extremely low ground pressure to protect finished surfaces, and the ability to climb grades up to 25% where wheeled lifts cannot operate safely.
- ❓ Can the FBZ-6T be used indoors? Yes. The low ground pressure rubber tracks prevent damage to sensitive floor surfaces, and the zero-tailswing design allows maneuvering in narrow aisles and around machinery.
- ❓ What is the zero tailswing benefit? Zero tailswing means the turntable does not extend beyond the machine's chassis during rotation — allowing 355° rotation in confined spaces without risk of collision with walls, structures, or adjacent equipment.
- ❓ How is the FBZ-6T transported between sites? With stowed dimensions of only 4.95m × 1.54m, the FBZ-6T can be loaded onto standard trailers and towed by light commercial vehicles — reducing logistics costs and mobilization time.
- ❓ What safety features are included? The FBZ-6T includes overload protection, tilt level protection, emergency lowering, automatic braking system, foot pedal switch, motion alarm, flashing beacons, and fault diagnosis system for maximum operator safety.
