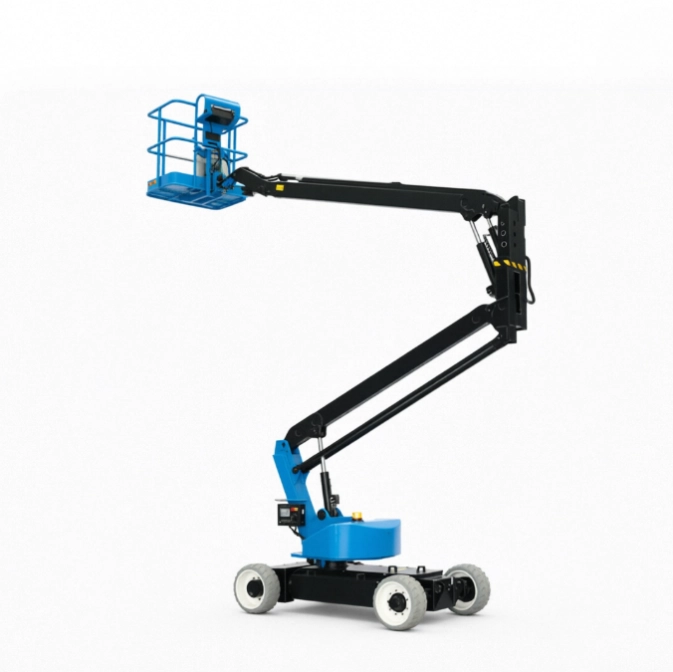

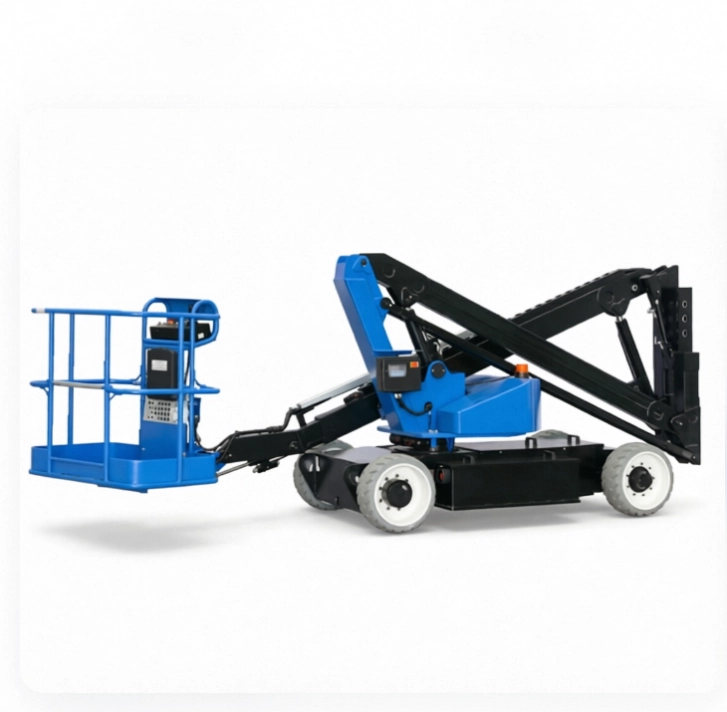

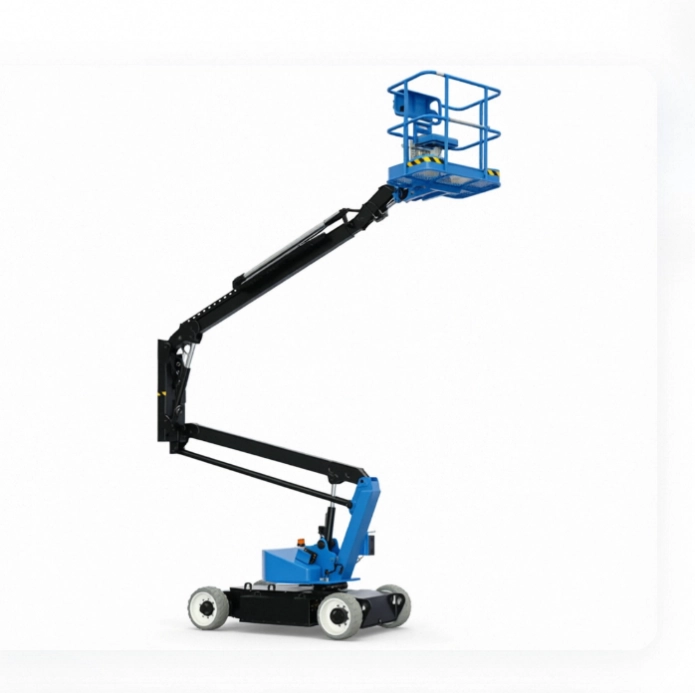

FBZ12E Articulated Boom Lift
2WD electric articulated boom lift with 13.5m working height and zero tailswing when raised. Compact dimensions, AC drive system, and robust design make it ideal for construction sites, rental fleets, and facility maintenance in confined spaces.
Specifications
- Max Working Height
- 13.5 meter
- Overall width
- 1.64 meter
- Lifting capacity
- 215kg
Outstrip FBZ12E Electric Articulating Boom Lift
The Outstrip FBZ12E is a electric articulating boom lift engineered for precision, safety, and efficiency in demanding access applications. With a maximum working height of 13.5 metres (11.5m platform height), a 215 kg load capacity (supporting two persons indoors), and an impressive horizontal outreach of 6.8 metres, this zero tailswing aerial platform delivers exceptional versatility for complex work environments. Powered by an 8 × 6V / 224Ah AGM battery system, the FBZ12E offers zero emissions and quiet operation — ideal for both indoor facility maintenance and outdoor construction sites. The AC drive system provides smooth, efficient travel with maintenance‑free motors, while the articulating boom design allows operators to reach up, over, and around obstacles with ease. With a stowed tailswing of just 0.75m and zero tailswing when raised, this electric boom lift navigates narrow aisles and confined spaces without compromising reach or stability — making it a reliable choice for construction, facility maintenance, rental fleets, and event production.
🔧 Key Features & Benefits
- 🎯 Precise Positioning – Articulating boom design provides exceptional versatility and precise positioning capabilities for complex work environments, allowing operators to reach up, over, and around obstacles with ease.
- ⚡ AC Drive System – Accurate and efficient AC drive system delivers smooth control and strong power. The entire vehicle motor is maintenance‑free, reducing total cost of ownership.
- 🔄 Zero Tailswing (Raised) – Zero turntable tailswing when the boom is raised allows operation in narrow aisles and confined spaces without compromising reach or stability. Stowed tailswing is only 0.75m.
- 🔋 AGM Battery Power – Powered by 8 × 6V / 224Ah AGM battery system, delivering zero emissions, quiet operation, and all‑day reliability for both indoor and outdoor applications.
- 🛡️ Comprehensive Safety – Multi‑layer safety package including overload protection, tilt level protection, emergency lowering system, automatic braking, and independent emergency power system for maximum operator protection.
- 🔧 Easy Maintenance – Self‑lubricating bearings, fault diagnosis system, and simplified service access reduce downtime and lower total cost of ownership. Robust design ensures reliable rental fleet performance.
🏢 Applications
The FBZ12E is purpose‑built for a wide range of aerial access applications:
- 🏗️ Construction Sites – Steel erection, façade installation, electrical work, and general building maintenance with zero tailswing for tight urban job sites.
- 🏢 Facility Maintenance – HVAC maintenance, lighting replacement, cleaning, and general building upkeep in shopping centres, airports, and industrial facilities.
- 🚚 Rental Fleet – Robust design with easy service access makes the FBZ12E an excellent choice for equipment rental companies seeking reliable, low‑maintenance aerial platforms.
- 🌳 Landscaping & Forestry – Articulated arm reaches up and over trees and shrubs for trimming, pruning, and removal work in parks, gardens, and along roadways.
- 🔌 Utility & Infrastructure – Electric power line maintenance, street lighting repair, and telecommunications tower access with zero emissions and quiet operation.
- 🎬 Events & Filming – Quiet electric operation and precise positioning make it ideal for film production, concert staging, and event lighting setup.
📋 Technical Specifications
| 📐 Dimensions | |
|---|---|
| Max. Working Height | 13.5 m (44 ft 3 in) |
| Max. Platform Height | 11.5 m (37 ft 9 in) |
| Max. Horizontal Outreach | 6.8 m (22 ft 4 in) |
| Max. Up and Over Clearance | 5.7 m (18 ft 8 in) |
| Platform Dimensions (L×W×H) | 1.18 × 0.78 × 1.1 m (46.5 × 30.7 × 43.3 in) |
| Length (Stowed) | 5.27 m (17 ft 3 in) |
| Width (Stowed) | 1.64 m (5 ft 5 in) |
| Height (Stowed) | 1.98 m (6 ft 6 in) |
| Wheelbase | 2.00 m (6 ft 7 in) |
| Ground Clearance | 0.12 m (4.7 in) |
| ⚡ Performance | |
| Platform Capacity | 215 kg (474 lbs) |
| Max. Occupancy (Indoor) | 2 persons |
| Max. Occupancy (Outdoor) | 1 person |
| Gradeability | 30% |
| Travel Speed (Stowed) | 0–4 km/h (2.5 mph) |
| Travel Speed (Raised) | 0–0.8 km/h (0.5 mph) |
| Platform Rotation | 160° |
| Turntable Rotation | 355° (non‑continuous) |
| Turning Radius (Inside) | 0.91 m (3 ft) |
| Turning Radius (Outside) | 3.0 m (9 ft 10 in) |
| Turntable Tailswing (Raised) | 0 m |
| Turntable Tailswing (Stowed) | 0.75 m (2 ft 6 in) |
| Raise Speed | 85–100 seconds |
| Lower Speed | 70–85 seconds |
| Max. Working Inclination Angle | 2° / 3° |
| ⚙️ Drive & Power | |
| Drive | 2 Wheel Drive (2WD) |
| Drive System | AC Drive Motor |
| Power Source | 8 × 6V / 224Ah AGM Battery |
| Tires | 22 × 9‑16 / Foam‑filled, Non‑marking |
| Controls | Proportional control |
| ⚖️ Weight | |
| Overall Weight | 3,735 kg (8,236 lbs) |
✅ Standard Equipment
- Foot pedal switch
- Emergency stop
- Emergency lowering
- Overload protection
- Tilt level protection
- Motion alarm
- Flashing beacons
- Horn
- Drive at full height
- Hour meter
- Automatic braking system
- Fault diagnosis system
- Charger protection
- Proportional control
- Self‑lubrication bearing
🔹 Optional Upgrades
- Air line to platform
- AC power on platform
- Platform LED work light
- Custom paint colour
- Air switch
❓ Frequently Asked Questions
The FBZ12E offers a maximum working height of 13.5 metres (44 ft 3 in) and a platform height of 11.5 metres (37 ft 9 in), making it suitable for a wide range of elevated access tasks.
The FBZ12E supports up to 2 persons indoors (with a 215 kg total capacity) and 1 person outdoors, providing flexibility for both maintenance and construction applications.
When the boom is raised, the turntable does not extend beyond the chassis — allowing 355° rotation in confined spaces without collision risk. Stowed tailswing is only 0.75m, making transport and manoeuvring in tight areas easy.
Yes. The AGM battery system provides zero emissions and quiet operation, making it ideal for indoor facilities such as shopping centres, airports, warehouses, and factories.
The FBZ12E includes overload protection, tilt level protection, emergency lowering, automatic braking, independent emergency power system, foot pedal switch, motion alarm, flashing beacons, and a fault diagnosis system.
