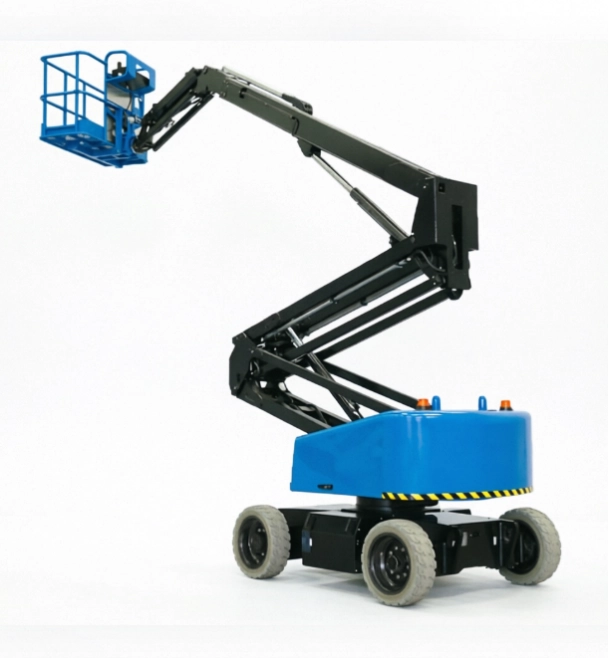

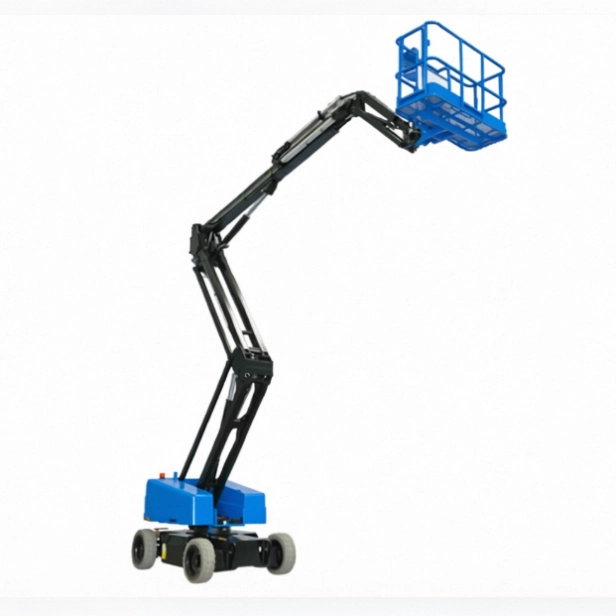

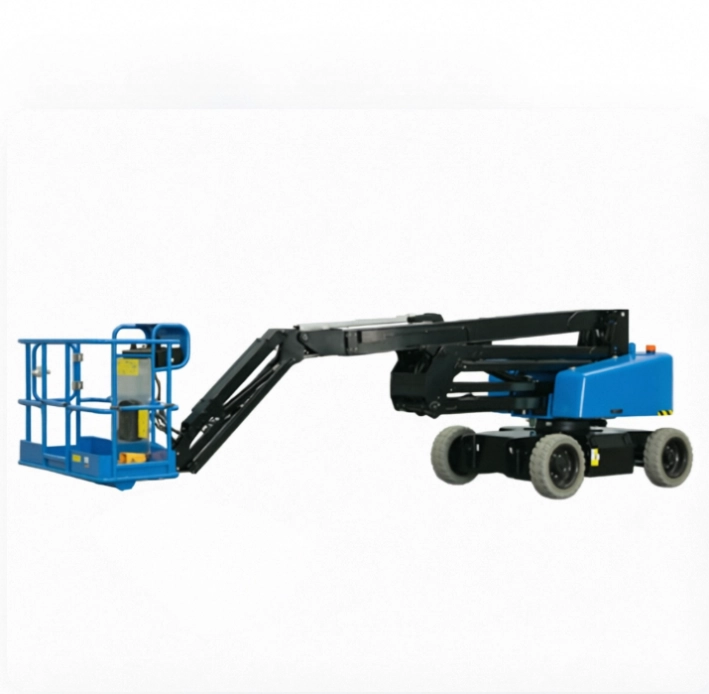

FBZ16J Articulated Boom Lift
2WD electric articulating boom lift. 17.7m working height, zero tailswing, and AC drive system for smooth, efficient operation. Engineered for precision access in complex work environments.
Specifications
- Max Working Height
- 17.7 Meter
- Platform Capacity
- 250kg
- Turntable Tailswing
- 0 meter
NEW | Electric Articulating Boom Lift
FBZ16J Articulated Boom Lift
The articulated boom lift is available with 2-wheel drive configuration. This range is designed tough for the rental industry, with robust and reliable performance which easily reaches up and out-manoeuvre various obstacles. Accurate and efficient travelling AC drive system to provide strong power and smooth control. The products are simple to operate and have easy maintenance, boasting high-level safety and reliability.
Key Features & Benefits
Engineered for precision, safety, and efficiency in demanding access applications.
⚡
AC Drive System
Accurate and efficient travelling AC drive system provides strong power delivery with exceptionally smooth control, reducing energy consumption and maintenance costs.
🔄
Zero Tailswing
Zero turntable tailswing in both raised and stowed positions allows operation in confined spaces and narrow aisles without compromising reach or stability.
🔋
8x6V AGM Battery
Powered by a robust 445Ah AGM battery system, delivering reliable all-day performance with zero emissions, ideal for both indoor and outdoor applications.
🛡️
Multi-Layer Safety
Comprehensive safety package including overload protection, tilt level protection, emergency lowering, and automatic braking system for maximum operator protection.
🔧
Easy Maintenance
Self-lubricating bearings, fault diagnosis system, and simplified service access reduce downtime and lower total cost of ownership.
🎛️
Proportional Control
Precision proportional controls enable smooth, intuitive operation for both novice and experienced operators, enhancing productivity on every job.
Technical Specifications
Complete dimensional and performance specifications for the FBZ16J articulated boom lift.
Dimensions | |
|---|---|
Max Working Height | 17.7m (58 ft 1 in) |
Max Platform Height | 15.7m (51 ft 6 in) |
Max Horizontal Outreach | 9.3m (30 ft 6 in) |
Max Up and Over Clearance | 7.8m (25 ft 7 in) |
Platform Dimensions (L×W×H) | 1.83 × 0.76 × 1.1m (72 × 30 × 43 in) |
Length (Stowed) | 7.4m (24 ft 3 in) |
Width (Stowed) | 1.89m (6 ft 2 in) |
Height (Stowed) | 2.23m (7 ft 4 in) |
Performance | |
Platform Capacity | 250kg (551 lbs) |
Platform Occupancy (Indoor/Outdoor) | 2 persons |
Gradeability | 30% |
Platform Rotation | 160° |
Turntable Rotation | 355° (non-continuous) |
Turning Radius (Inside) | 1.8m (5 ft 11 in) |
Turning Radius (Outside) | 4.27m (14 ft) |
Turntable Tailswing (Raised) | 0m |
Turntable Tailswing (Stowed) | 0m |
Power & Drive | |
Power Source | 8 × 6V / 445Ah AGM Battery |
Drive | 2 Wheel Drive (2WD) |
Drive System | AC Drive Motor |
Tires Spec/Type | 240/55-17.5 / Foam-filled |
Weight | |
Overall Weight | 7,385 kg (16,281 lbs) |
✓Standard Equipment
- ✓Foot pedal switch
- ✓Emergency stop
- ✓Emergency lowering
- ✓Overload protection
- ✓Tilt level protection
- ✓Motion alarm
- ✓Flashing beacons
- ✓Horn
- ✓Drive at full height
- ✓Hour meter
- ✓Automatic braking system
- ✓Fault diagnosis system
- ✓Charger protection
- ✓Proportional control
- ✓Self-lubrication bearing
+Optional Upgrades
- +Air line to platform
- +AC power on platform
- +Platform LED work light
- +Customize color
- +Air switch
Applications
The FBZ16J is purpose-built for a wide range of aerial access applications.
🏗️
Construction
Ideal for steel erection, facade installation, and general building maintenance with zero tailswing for tight urban job sites.
⚡
Electrical & Utility
Quiet electric operation and precise positioning make it perfect for electrical work, lighting maintenance, and utility access.
🏭
Industrial Maintenance
Navigate around machinery and production lines with the compact footprint and articulated arm design for overhead equipment access.
🚗
Facility Management
Zero emissions and quiet operation allow indoor use in warehouses, shopping centers, airports, and other sensitive environments.
