GTWB18-4218 Multi‑mast Vertical Mast Lift with 20m working height
GTWB18-4218 multi-mast vertical lift provides maximum 20m working height, 18m platform, and 160kg rated load, CE EN280 certified. Ideal for access, aerial, manlift, one-man, portable, vertical platform, and personal lift. Durable and competitively priced.
Specifications
- Model
- GTWB18-4218
- Max. platform height
- 18 meter
- Max. working height
- 20 meter
- Capacity
- 160kg
- Stowed dimension
- 2360*1250*2180mm
- Standard
- EN280
GTWB18-4218 20m Multi‑mast Vertical Lift · CE Certified (EN280)

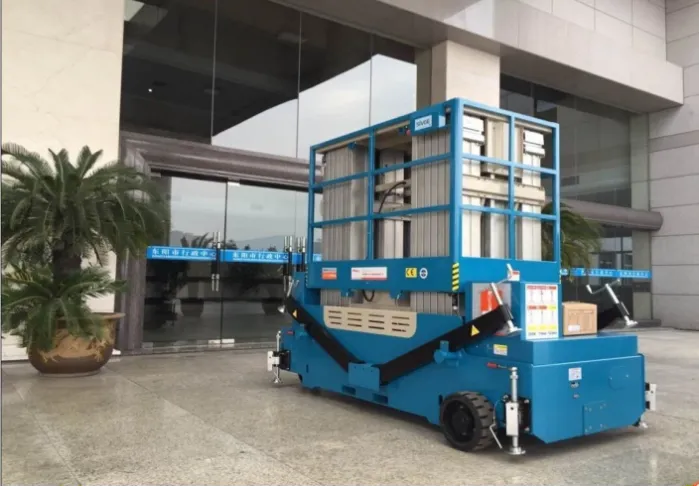

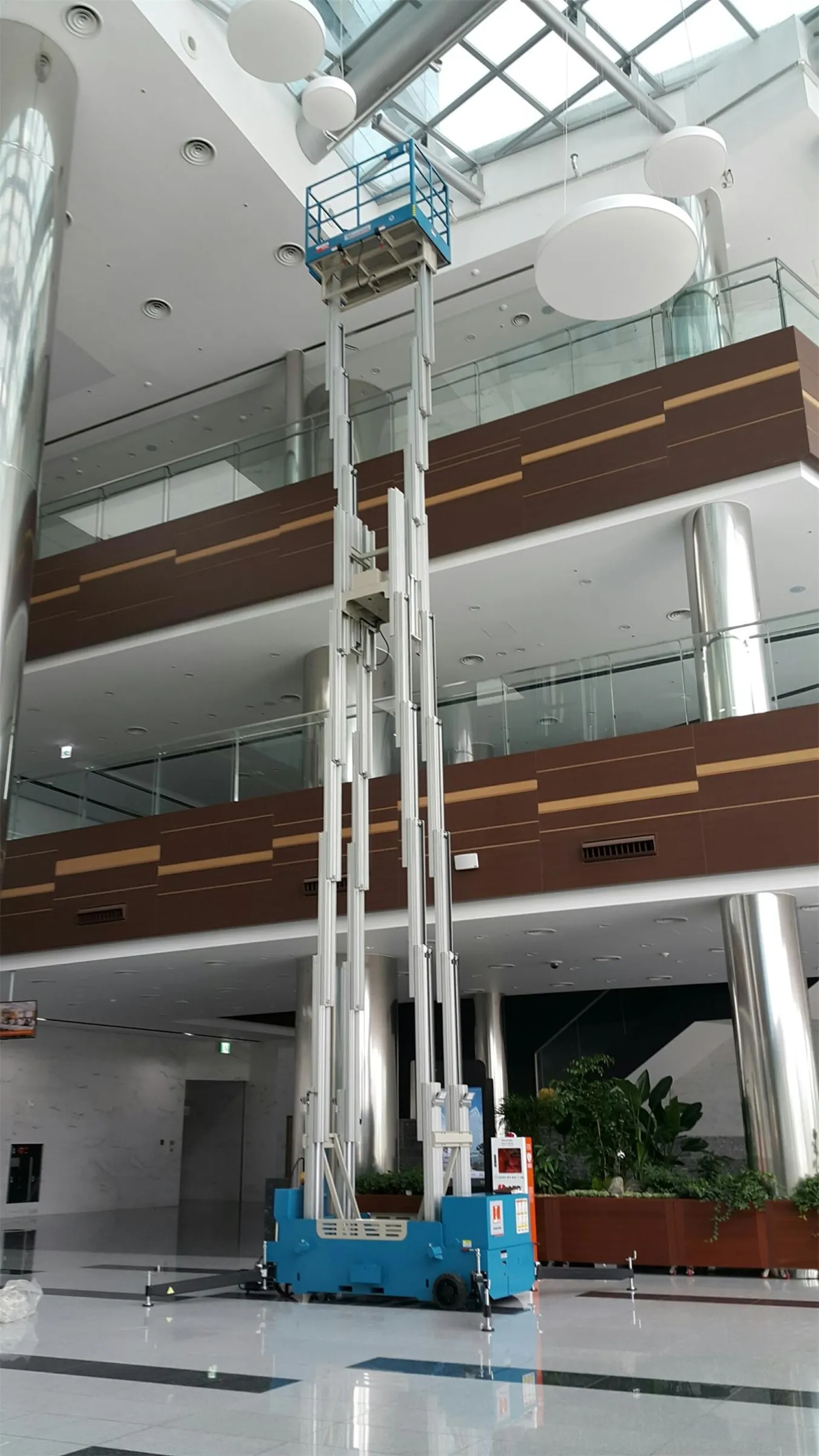

The GTWB18-4218 is a multi‑mast vertical mast lift designed for both indoor and outdoor height‑access tasks. It offers a maximum working height of 20 metres and a platform capacity of 160 kg, supporting one‑ or two‑person operation. The machine is CE certified (EN280), powered by AC220V/50Hz with an optional UPS backup, and features electric‑assist travel for easy manoeuvring when stowed. Manufactured in China and supplied by Outstrip Industrial, this vertical lift incorporates a patented eight‑point support system and dual‑safety protection. It is widely used for ceiling installations, lighting replacement, and equipment maintenance in shopping malls, airports, factories, theatres, and warehouses.
📋 Technical Specifications
| Country of origin | China |
| Model | GTWB18-4218 |
| Max. working height | 20.0 m |
| Max. platform height | 18.0 m |
| Platform capacity | 160 kg |
| Platform dimension | L1480 × W860 mm |
| Stored height | 2180 mm |
| Stored length | 2360 mm |
| Stored width | 1250 mm |
| Length with outriggers | 3350 mm |
| Width with outriggers | 3000 mm |
| Machine weight (approx.) | 2150 kg |
| Power supply | AC220V/50Hz + UPS (optional) |
| Motor for lifting | AC: 0.75/1.5kw |
| Motor for drive | DC24V/0.8kw |
| Control | Platform and base (dual control) |
| Standard | CE (EN280) |
| Shipping dimension (LCL) | 7.75 cbms / G.W. 2400KG |
🔧 Features & Safety Advantages
- Dual operation control – Platform and ground controls; platform has priority.
- Emergency stop & lowering – Buttons at both stations; manual hydraulic descent on power failure.
- 24V safe control voltage – Low‑voltage circuit for operator protection.
- Eight‑point support (patented) – Levelling stabilisers + outriggers with smart monitoring.

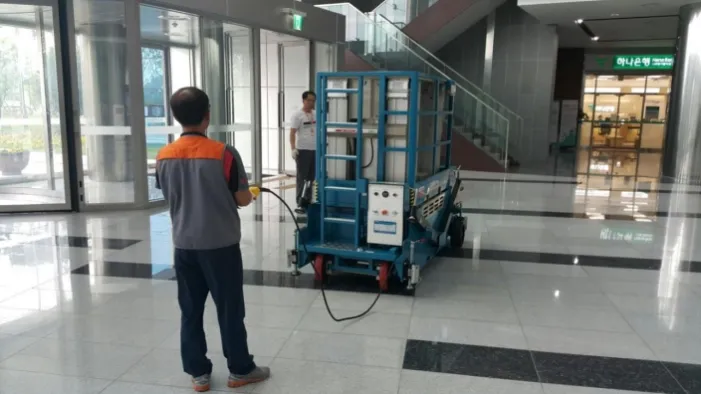

- Electric‑assist travel – Motor‑propelled movement when stowed – no manual pushing.
- IP54 waterproof electrical components – Buttons, switches and external parts rated IP54.
- OMRON limit switch – Critical safety component from a trusted global brand.
- Patented guide roller device – Ensures smooth, clearance‑free mast cooperation.
- All‑steel hydraulic tubing – Steel pipes reduce leakage and impact damage.
- Ratchet‑wheel screw outriggers – Easy and precise levelling adjustment.
- Forklift pockets – Standard for convenient transport and handling.
- Explosion‑proof valve + triple travel protection – Prevents sudden drops; includes electrical, cylinder, and mechanical limiters.
- Electro‑mechanical interlock – Platform cannot lift unless outriggers are deployed; LED status display.
🏢 Typical Applications
Common uses:
- Commercial decoration / ceiling installation
- Industrial equipment maintenance
- Hall lamp & fixture replacement
- Street light maintenance
- Aerial photography
- Wall cleaning & façade work
Suitable locations:
- Office buildings · Shopping malls
- Theatres · Hospitals · Warehouses
- Factories · Museums · Auditoriums
- Hotels · Gymnasiums · Convention centres
- Airports · Bus stations · Highway toll booths
