GTWZ8-2008 Self-Propelled Double Mast Vertical Platform Lift to 10 meter working height
GTWZ8‑2008 is a self‑propelled double‑mast lift with 8m platform height, 10m working height, and 300kg capacity for 2 persons. Compact, agile in tight aisles, battery‑powered, and CE‑certified – ideal for warehouses and facility maintenance.
Specifications
- Model
- GTWZ8-2008
- Max. platform height
- 8 meter
- Max. working height
- 10 meter
- Load capcity
- 300kg for 2 Persons
- Move method
- Self-Propelled with Full-Height Drivability
- Machine weight
- 1450kg

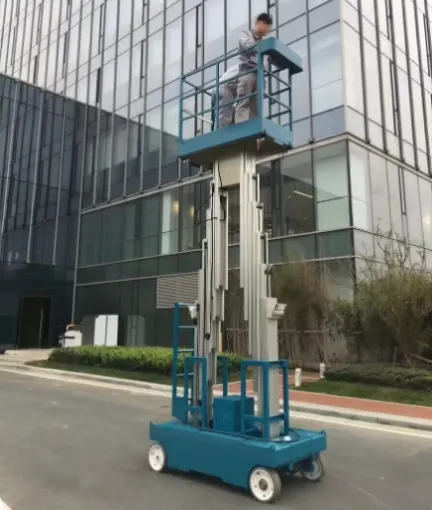

GTWZ8-2008 Self-Propelled Double Mast Vertical Platform Lift
The GTWZ8-2008 is a self‑propelled double mast vertical platform lift engineered for safe, efficient aerial work at heights up to 10 metres. With a robust 300 kg load capacity – comfortably supporting two persons plus tools – this compact electric lift delivers exceptional stability and manoeuvrability in warehouses, retail spaces, factories, and maintenance facilities. Powered by a maintenance‑free 24V DC battery, it offers quiet, zero‑emission operation, while full‑height drivability and a tight turning radius allow operators to reposition the platform without lowering it. Fully compliant with EN280 and backed by a 1‑year warranty and global support from Outstrip Industrial, the GTWZ8‑2008 is the reliable choice for indoor vertical access.
🔧 Key Features & Advantages
- 🏗️ High‑Strength Double Mast Structure – Dual mast design with high‑strength aluminium alloy provides superior stability and rigidity even at full 10m extension.
- 🚀 Self‑Propelled with Full‑Height Drivability – Driveable at full height for maximum productivity. Travel speed of 2.4 km/h stowed and 0.8 km/h lifted allows efficient repositioning without lowering.
- 🔄 Small Turning Radius – Inside turning radius of ~0.6m with active front steering, making it easy to navigate narrow aisles and tight spaces.
- 🛡️ Comprehensive Safety Systems – Emergency descent valve, tilt alarm, emergency stop buttons at both control stations, and automatic parking brake.

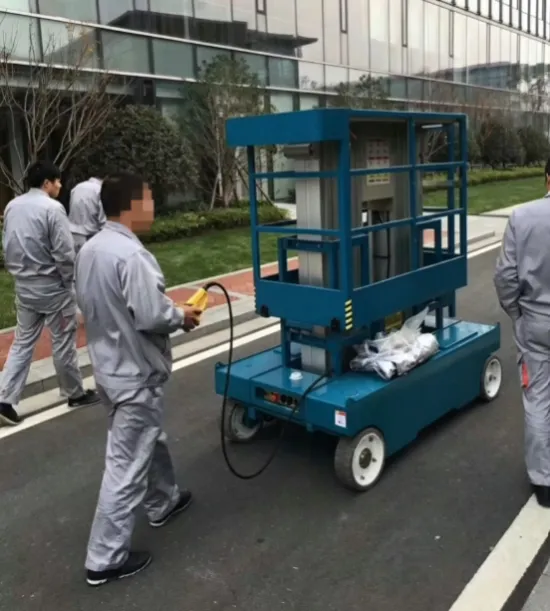

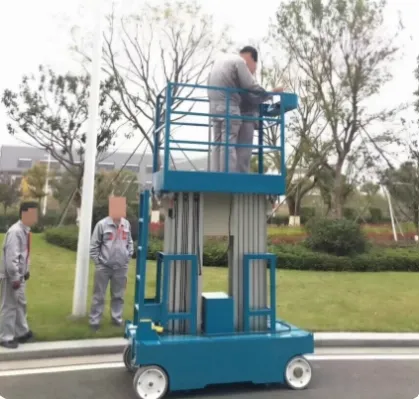

- 🎮 Dual Controls & Proportional Joystick – Platform and ground dual control stations with a one‑hand proportional joystick for precise, intuitive operation.
- 🔋 Maintenance‑Free Battery Power – Reliable 24V DC battery system with quiet, zero‑emission performance – ideal for indoor environments.
🏢 Ideal Applications
The GTWZ8‑2008 is versatile and widely used across multiple industries:
- 🏬 Warehouses & Distribution Centres
- 🛒 Retail Stores & Shopping Malls
- 🏭 Factories & Manufacturing Plants
- ✈️ Airports & Terminals
- 🏨 Hotels & Convention Centres
- 🔧 Facility Maintenance & Inspection
- 💡 Lighting & Electrical Installation
- 🧹 Cleaning & Janitorial Services
📋 Technical Specifications
| Model | GTWZ8-2008 |
| Country of Origin | China |
| 📐 Dimensions | |
| Max. Platform Height | 8 m |
| Max. Working Height | 10 m |
| Platform Dimensions (L × W) | 1380 × 700 mm |
| Stowed Height | 1960 mm |
| Stowed Length | 1800 mm |
| Stowed Width | 970 mm |
| Machine Weight | 1450 kg |
| ⚖️ Load Capacities | |
| Platform Capacity | 300 kg (for 2 persons with tools) |
| Occupants | 2 persons |
| 🚀 Performance | |
| Moving Method | Self‑Propelled (Electric) |
| Travel Speed (Stowed) | 2.4 km/h |
| Travel Speed (Lifted) | 0.8 km/h |
| Turning Radius (Outside / Inside) | 2.1 m / ~0.6 m |
| Climbing Capacity | 15% |
| 🔋 Power Source | |
| Power Supply | DC 24V (Battery Powered) |
| Power Input (Elevating) | 1.2 kW |
| Power Input (Traveling) | 1.2 kW |
✅ Why Choose the GTWZ8‑2008?
- CE EN280 certified – full compliance with European safety standards.
- 1‑year warranty and responsive global after‑sales support from Outstrip Industrial.
- Zero emissions & ultra‑quiet – perfect for noise‑sensitive indoor workplaces.
- Easy maintenance with a robust battery system and accessible service points.
- Custom configurations available – contact us for battery upgrades, colour options, or special attachments.
