Vertical Mast Lift
Heavy duty aluminum double mast aerial work platform with simultaneous elevation
. Rated load: 200kg . Platform height: 6-14m . Working height: 8-16m

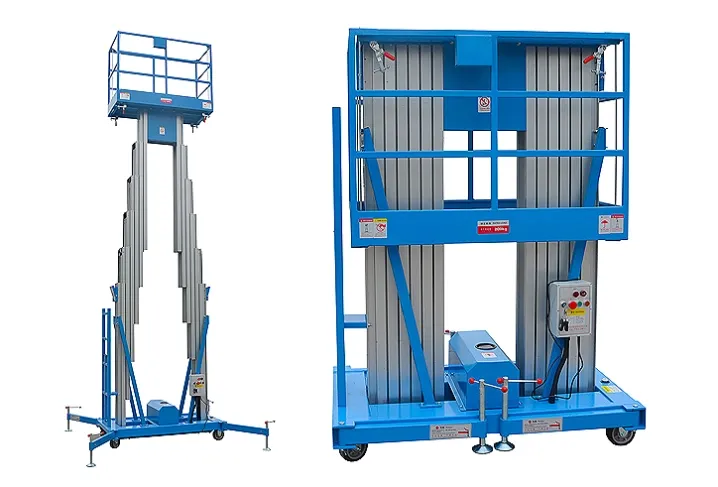

Outstrip GTWY Series Double Mast Vertical Lift – Heavy‑Duty Aerial Work Platform
🏗️ Double Mast | Heavy‑Duty
📐 16m Max Working Height
⚖️ 300kg Rated Load Capacity
🔌 AC 220V or DC 24V Battery
🎮 Proportional Electro‑hydraulic Control
🛡️ CE + ISO8434‑1 Hoses
The Outstrip GTWY Series is a heavy‑duty double mast vertical lift engineered for demanding aerial work tasks in construction, warehousing, facility maintenance, and industrial access. Offering platform heights from 6 to 14 metres (with a maximum working height of 16 metres) and a rated load of up to 300 kg, this robust aerial work platform delivers exceptional stability through its synchronous dual‑mast lifting system, dual hydraulic cylinders, and heavy‑duty plate chains. Operators benefit from proportional electro‑hydraulic control for precise positioning, while dual AC 220V/50Hz or optional DC 24V battery power provides flexibility for both continuous and cordless, zero‑emission indoor use. Fully CE certified and fitted with ISO8434‑1 high‑pressure wire braided hoses, the GTWY double mast lift is the smart, safe upgrade from scaffolding and traditional ladders.
🏢 Key Applications
- Construction – drywall installation, ceiling work, and structural access
- Facility maintenance – HVAC servicing, pipework, and equipment inspection
- Warehouse order picking – high‑bay storage access and inventory management
- Theatre & event rigging – lighting, sound, and stage setup
- Electrical installations – cabling, conduit, and fixture replacement at height
- Industrial plant maintenance – machinery access and overhead repairs
🔧 Engineered for Superior Access – Key Features
- 🏗️ Synchronous Dual Mast Lifting – Dual hydraulic cylinders + plate chains ensure smooth, stable elevation with a wider platform and increased load capacity compared to single‑mast designs.
- ⚙️ Integrated Sliding Blocks – Proprietary built‑in sliders minimise dynamic gap between masts, offering superior lift stability vs conventional guide wheels.
- 🎮 Proportional Electro‑hydraulic Control – Adjustable lifting speed for precise positioning and smooth start/stop, enhancing operator confidence.
- 🔌 Dual Power Option (AC/DC) – Standard AC220V/50Hz or optional 24V battery pack for zero‑emission indoor operation and job‑site flexibility.
- ⛓️ 115% Overload Design & Chain Protection – Galvanised industrial plate chains with load limiter extend service life and add an extra safety margin.
- 🔩 High‑Pressure Wire Braided Hoses – Conforms to ISO8434‑1; burst pressure far exceeds system pressure. Anti‑rupture valve prevents rapid descent.
- 🎮 Dual Control (Platform + Ground) – Chint electric dual switch – operators can control elevation from platform or base station with emergency stop.
- 🛑 Emergency Descent Device – Manual lowering valve ensures safe descent even during power outage or hydraulic failure.
- 🛡️ 360° Safety Suite – Leakage protection, extreme limit switches, waterproof pushbutton box, and DC 24V control voltage for maximum personal safety.
- 🧲 Suction Cup Stabilisers + Bubble Level – Outriggers with level indicators guarantee solid ground support even on slightly uneven surfaces.
- ⚡ Integrated Hydraulic Power Unit – Compact pump station with reliable performance and emergency manual lowering for unexpected power loss.
- 🔄 Four‑Wheel Rolling Chassis – Manoeuvrable in tight corners, narrow aisles, and obstacle‑rich areas – truly portable.
- 🚪 Sliding Guardrail Design – Intermediate sliding bar allows easy personnel access; removable guardrails for transport convenience.
- ✅ 100% Product Liability Insurance – Every unit covered by comprehensive liability insurance – your assurance of quality and responsibility.
📋 Technical Specifications – GTWY Series (Double Mast)
| Model | GTWY6-200A | GTWY8-200A | GTWY9-200A | GTWY10-200A | GTWY12-200A | GTWY14-200A |
| Max. Platform Height (mm) | 6000 | 8000 | 9000 | 10000 | 12000 | 14000 |
| Max. Working Height (mm) | 8000 | 10000 | 11000 | 12000 | 14000 | 16000 |
| Ground Clearance (mm) | 80 (all models) | |||||
| Rated Load (kg) | 200–300 | 200–300 | 200–300 | 200–300 | 200–300 | 200 |
| Platform Size (mm) | 1100×600 | 1160×600 | 1320×600 | 1320×600 | 1420×600 | 1420×600 |
| Outrigger Span (mm) | 1940×1980 | 1940×1980 | 2190×2090 | 2190×2090 | 2420×2270 | 2520×2800 |
| Overall Length (mm) | 1510 | 1510 | 1670 | 1670 | 1730 | 1830 |
| Overall Width (mm) | 800 | 800 | 900 | 900 | 1000 | 1100 |
| Overall Height (stowed) mm | 1650 | 1980 | 1980 | 2040 | 1980 | 2380 |
| Weight AC (kg) | 460 | 530 | 560 | 600 | 700 | 810 |
| Weight DC (kg) | 500 | 570 | 600 | 640 | 740 | 850 |
🔋 Power Options & Hydraulic System
- Power Source (Standard): AC220V/50Hz
- Power Source (Optional): DC 24V battery pack (two 60Ah batteries + smart charger)
- Lifting Motor AC: 1.1kW (up to 12m models) / 2.2kW (14m model)
- Lifting Motor DC: 0.8kW (6–9m models) / 2.2kW (10–12m models) / 2.2kW (14m model)
- Transmission: Dual hydraulic cylinders + heavy‑duty industrial plate chains (double‑chain structure)
- Mast Material: High‑strength aviation aluminium (double mast set)
- Control Voltage: 24V DC safety control with leakage protection & waterproof enclosure
- Emergency Lowering: Standard manual mechanical descent valve (no power required)
- Safety Valves: Anti‑rupture check valve, overload limiter, extreme limit switches
- Platform Control: Upper/lower dual control with waterproof membrane switches
✅ Why the GTWY Double Mast Outperforms Conventional Lifts
- Heavy‑load capacity – handles up to 300kg, comfortably supporting two persons with tools and materials.
- Superior stability – the dual‑mast synchronous lifting system and wide outrigger span ensure rock‑solid performance at full 16m height.
- Dual power flexibility – choose AC electric for continuous operation or DC battery for quiet, cordless, zero‑emission work indoors.
- Precise control – proportional electro‑hydraulic valve allows smooth speed adjustment and accurate positioning.
- Rugged durability – galvanised industrial chains, high‑pressure steel wire hoses, and a robust 4mm chassis withstand demanding job sites.
- CE certified with ISO8434‑1 hoses and comprehensive liability insurance – your guarantee of safety and quality.
- Portable yet powerful – compact footprint and four‑wheel rolling chassis make it easy for one person to manoeuvre through narrow aisles and standard doorways.
- OEM support and global shipping from Outstrip Industrial – custom configurations available.
📌 Disclaimer: Specifications are subject to change without notice.
Different power configurations, platform extensions, and customisations are available upon request.
For the latest details, custom quotes, or volume pricing, please contact Outstrip Industrial.
