Vertical Mast Lift
Manual operated aluminum alloy Exhibition Material Lift
* Exhibition platform .Model: 3.5-7.9 meters .Load capacity: 200-400 .Working height 3.5-7.9 meters

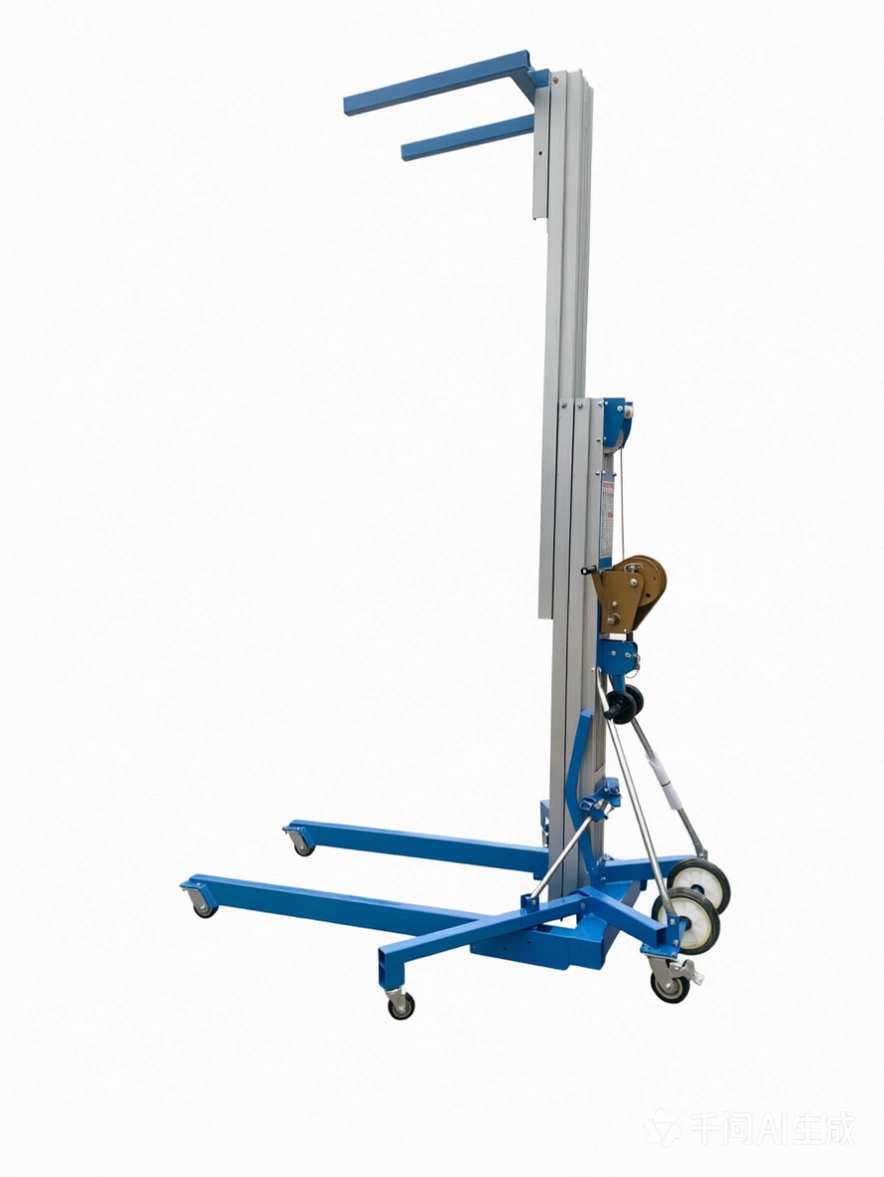

Manual Operated Aluminum Alloy Exhibition Material Lift GTWY Series – Single Mast Lift & Portable Working Platform
Exhibition construction dedicated · Reliable aerial lift for maintenance, warehousing & events⚡ Manual lift 🪜 Aluminum ladder structure 📦 Portable & compact 🔄 Vertical lift up to 7.9m 🏗️ Platform lift with 400kg capacity
The manual lift GTWY series is a premium aluminum ladder-based single mast lift designed for indoor and outdoor light-duty high-reach tasks. As an ideal access platform and working platform, it combines lightweight maneuverability with robust hydraulic lifting. Unlike bulky electric lift units, this portable lift requires no external power source — instead, a smooth hydraulic lift system (manual pump) provides precise, controlled height adjustment. Whether you need a compact small lift for exhibition booth assembly or a reliable vertical lift for warehouse picking, the GTWY serves as a versatile manlift and platform lift. It also functions as a safe hydraulic ladder alternative for maintenance tasks. With four models offering platform heights from 3.5m to 7.9m, this aerial lift is the ultimate lift vertical platform lift solution for efficient overhead work.
Key Product Features🏋️♂️
High Load Capacity
400kg max load (40cm load center) on GTWY-3.5, decreasing gradually with height. Extra safe rated capacities at 60cm & 80cm load centers, ideal for tools & materials.
🔧
Manual Hydraulic Operation
Silent, maintenance-friendly hydraulic lift system operated by foot/hand pump. No electricity required – true manual lift for any job site. Emergency descent valve included.
📐
Compact Storage & Mobility
Storage size only 740×840×2050mm for all models. Smooth casters & manual promotion make it a genuine portable lift. Easily fits through standard doorways.
🛡️
Aluminum Alloy Construction
High-strength aluminum ladder frame ensures lightweight yet durable structure. Rust-resistant, ideal for exhibition halls, hotels, and clean environments.
🎯
Single Mast Stability
Precision-engineered single mast lift design with fork-guided mechanism provides smooth vertical travel. Working ground clearance 40mm enhances platform rigidity.
🏟️
Exhibition & Event Ready
Dedicated to exhibition construction – quick setup, non-marking tires, and anti-slip platform. Perfect access platform for lighting, banners, and rigging.
Technical Specifications
Parameter / Model | GTWY-3.5 | GTWY-5 | GTWY-6.5 | GTWY-7.9 |
|---|---|---|---|---|
Max. Platform Height (mm) | 3500 | 5000 | 6500 | 7900 |
Fork Size (mm) | 720 × 501 | 720 × 501 | 720 × 501 | 720 × 501 |
Working Height – Fork Mounted (mm) | 3500 | 5000 | 6500 | 7900 |
Working Height – Fork Lower Installation (mm) | 3000 | 4500 | 6000 | 7400 |
Unfolding Size L×W×H (mm) | 2030 × 1820 × 2010 | 2030 × 1820 × 2010 | 2030 × 1820 × 2010 | 2030 × 1820 × 2010 |
Working Ground Clearance (mm) | 40 | 40 | 40 | 40 |
Load Capacity @ 40cm load center (kg) | 400 | 350 | 300 | 250 |
Load Capacity @ 60cm load center (kg) | 350 | 300 | 250 | 200 |
Load Capacity @ 80cm load center (kg) | 250 | 250 | 200 | 150 |
Storage Size L×W×H (mm) | 740 × 840 × 2050 | 740 × 840 × 2050 | 740 × 840 × 2050 | 740 × 840 × 2050 |
Storage Ground Clearance (mm) | 70 | 70 | 70 | 70 |
Total Weight (kg) | 160 | 180 | 200 | 220 |
Movement Type | Manual lifting / push & pull | Manual lifting / push & pull | Manual lifting / push & pull | Manual lifting / push & pull |
✅ Ideal as an access platform for:
- Exhibition stands & tradeshows
- Facility maintenance & ceiling repair
- Warehouse order picking (vertical lift application)
- Theatre rigging & event decoration
🔹 Why choose this portable lift?
- No battery or electric cables – true manual lift
- CE marked, overload valve standard
- Single mast lift with superior torsional rigidity
- Compact footprint saves valuable workspace
🏗️ Hydraulic lift & manlift advantages:
- Smooth raising/lowering via hydraulic pump
- Emergency manual descent for safety
- Low maintenance, no hydraulic accumulator issue
📞 Get a quick quote · OEM customization available · GTWY series meets global safety standards* Working height depends on operator’s reach (approx. 2m added to platform height). Load capacities are based on uniform distributed load at specified load center distance. All values are nominal. We reserve the right to modify materials and technical parameters without prior notice; please confirm before order.
