Rough Terrain Scissor Lifts | True 4-Wheel Drive
Max Working Height: 12 – 18 m Max Platform Capacity: 680 – 1,150 kg Gradeability (4WD): 40% / 22° Engine Power: 36 kW Kubota Platform Occupancy: Up to 7 persons

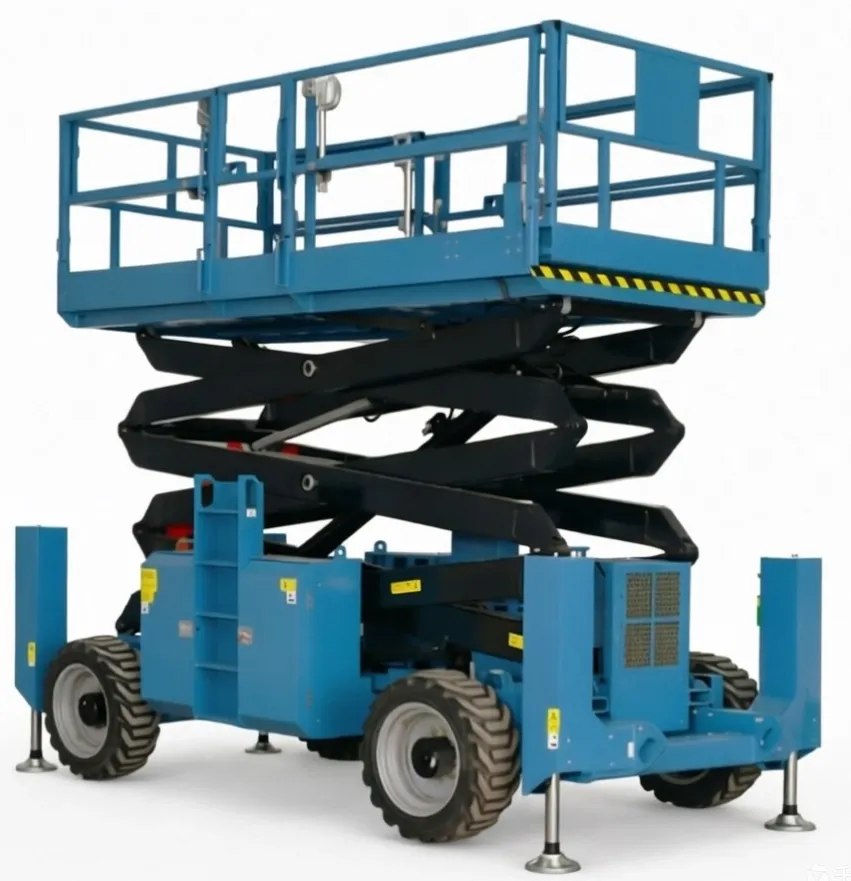

Outstrip RT Series 4WD Rough Terrain Scissor Lifts – 1023RT / 1323RT / 1623RT
The Outstrip RT Series – comprising the 1023RT, 1323RT, and 1623RT – represents the pinnacle of rough terrain scissor lift design, integrating a heavy‑duty 4‑wheel drive (4WD) system with a powerful Kubota V2403 diesel engine. Engineered for the world's harshest outdoor job sites, these 4WD scissor lifts deliver uncompromised traction, stability, and lifting power where ordinary slab‑specific lifts cannot operate. With maximum working heights ranging from 12 to 18 metres and platform capacities up to 1,150 kg (2,535 lbs), the RT series tackles large‑scale construction, bridgeworks, heavy industrial maintenance, and oil & gas applications with ease. The oscillating axle and 0.36 metre ground clearance allow negotiation of mud, gravel, and steep slopes, while full‑height driving capability and automatic leveling outriggers maintain high productivity across the entire shift. With 40% gradeability and massive rough‑terrain tyres, the RT series conquers terrain that stops conventional lifts – making it the ultimate heavy‑duty aerial work platform for demanding outdoor environments.
🚀 Key Performance Indicators
- 🚀 18m Working Height – 1623RT model reaches the highest working heights
- ⚙️ 1,150 kg Lift Capacity – 1023RT delivers industry‑leading platform capacity
- 🌲 40% Gradeability – 4WD traction conquers steep slopes and rough terrain
- 🛞 Oscillating Axle – Keeps all tyres in contact with uneven ground
- ⛽ Kubota V2403 – 36kW Diesel – Legendary reliability and torque
- 📦 1.83m Wide Platform – Dual extensions for maximum reach
- 👥 Up to 7 Persons – Platform occupancy for large crews
📋 Technical Specifications – 1023RT / 1323RT / 1623RT
| Parameter | 1023RT | 1323RT | 1623RT |
|---|---|---|---|
| 📐 Dimensions | |||
| Type | Rough Terrain Scissor Lift — 4 Wheel Drive (4WD) | ||
| Max. Working Height | 12 m / 39.4 ft | 15 m / 49.2 ft | 18 m / 59.1 ft |
| Max. Platform Height | 10 m / 32.8 ft | 13 m / 42.7 ft | 16 m / 52.5 ft |
| Overall Length (with outriggers) | 4.90 m / 193 in | ||
| Overall Width | 2.30 m / 90.6 in | ||
| Overall Height (Guardrails unfolded) | 2.75 m | 2.95 m | 3.15 m |
| Overall Height (Guardrails folded) | 2.05 m | 2.25 m | 2.50 m |
| Platform Extension – Front | 1.50 m / 59 in | ||
| Platform Extension – Rear | 1.20 m / 47 in | ||
| Platform Width | 1.83 m / 72 in | ||
| Wheelbase | 2.85 m / 112 in | ||
| Ground Clearance | 0.36 m / 14.2 in | ||
| ⚖️ Weight | |||
| Overall Weight | 7,200 kg / 15,873 lbs | 7,600 kg / 16,755 lbs | 8,000 kg / 17,637 lbs |
| ⚡ Performance | |||
| Max. Platform Occupancy | 7 persons | 7 persons | 4 persons |
| Lift Capacity (Main Platform) | 1,150 kg / 2,535 lbs | 680 kg / 1,500 lbs | 680 kg / 1,500 lbs |
| Lift Capacity (Extension Deck) | 230 kg / 507 lbs | ||
| Driving Height | Full height | Full height | 9 m / 29.5 ft |
| Driving Speed (Stowed) | 0 – 6 km/h / 0 – 3.7 mph | ||
| Driving Speed (Raised) | 0 – 1.1 km/h / 0 – 0.7 mph | ||
| Gradeability | 40% / 22° | ||
| Turning Radius (Inside / Outside) | 2.16 m / 5.33 m | ||
| Rise / Lower Speed | 50 / 35 s | 55 / 45 s | 60 / 50 s |
| Controls | Proportional control (lift + drive) | ||
| Drive System | 4WD (4‑Wheel Drive) with oscillation axle | ||
| Tires | 300 mm × 840 mm / 12×33" foam‑filled / pneumatic | ||
| 🔋 Power Unit | |||
| Engine | Kubota V2403, 36 kW (48.3 HP) — Diesel | ||
| Auxiliary Power Unit | 12V DC | ||
| Hydraulic Tank Capacity | 110 L / 29 gal | ||
| Fuel Tank Capacity | 110 L / 29 gal | ||
🔧 Engineered for Extreme Terrain – True 4WD Capability
- 🚜 Full‑time 4‑Wheel Drive – The RT series integrates a robust 4×4 drivetrain that delivers power to all four wheels simultaneously, providing superior traction on soft mud, loose gravel, and steep construction slopes. Combined with an oscillating axle, it keeps all tyres in contact with uneven ground, maximising grip.
- ⛰️ 40% Gradeability & High Ground Clearance – With a class‑leading 40% gradeability (22°) and 0.36 m (14.2 in) ground clearance, the RT series negotiates ramps, site debris, and rough transitions without undercarriage impact — ensuring uninterrupted workflow.
- ⚙️ Kubota V2403 Diesel Power – Powered by the legendary Kubota V2403 diesel engine (36 kW), the RT series delivers reliable, high‑torque performance even in demanding conditions. The engine is paired with a 110L fuel tank for extended operation between refuels, reducing downtime.
- 🛞 Large Rough‑Terrain Tires – Fitted with massive 300×840 mm (approx. 12×33") tyres, these lifts provide excellent flotation and traction. Optional foam‑filled tyres eliminate puncture risks on debris‑strewn job sites.
- 🏋️ Massive Lift Capacity – The 1023RT offers an industry‑leading 1,150 kg (2,535 lb) platform capacity, allowing you to carry multiple workers, heavy tools, and bulky materials in a single lift.
- 🏗️ Full‑Height Driving & Auto‑Leveling Outriggers – Unlike many competitors, the 1023RT and 1323RT support driving at full platform elevation. The one‑button automatic leveling outriggers provide a stable base on slopes up to 7°, ensuring safety and operator confidence.
✅ Standard Equipment & Safety Systems
- Emergency stop (platform + ground)
- Automatic leveling outriggers
- Overload protection system
- Descent alarm & tilt detection
- Motion alarm & horn
- Dual flashing amber beacons
- Proportional joystick control
- Hour meter & system diagnostics
- Oscillating front axle
- 12V DC auxiliary power unit
- Hydraulic braking system
- Foldable guardrails for transport
🔹 Optional Upgrades & Accessories
- Foam‑filled tyres (puncture‑proof)
- Cold weather starting kit
- Platform AC power outlet (230V)
- Air line to platform
- Pipe cradle / material handling kit
- Full LED lighting package
- Custom machine colours / branding
🏢 Heavy‑Duty Applications for 4WD Rough Terrain Lifts
✅ Why the RT Series Outperforms Conventional Scissor Lifts
- True 4WD traction – conquers mud, gravel, and steep slopes where 2WD and slab‑specific lifts cannot operate
- Oscillating axle – maintains tyre contact on uneven ground for maximum grip and stability
- Massive load capacity – up to 1,150 kg carries heavy tools and materials, reducing trips and increasing productivity
- Kubota diesel reliability – legendary engine performance with low emissions and extended runtime
- Full‑height driving – reposition without lowering the platform, saving time on large job sites
- Auto‑leveling outriggers – one‑button setup on slopes up to 7° for safety and confidence
- Heavy‑duty construction – built for the rental industry and the world's toughest job sites
❓ Frequently Asked Questions
The models differ primarily in working height and capacity. The 1023RT offers 12m working height with a massive 1,150kg capacity. The 1323RT provides 15m working height with 680kg capacity. The 1623RT reaches 18m working height with 680kg capacity.
Full‑time 4WD, an oscillating axle, 40% gradeability, 0.36m ground clearance, and large 12×33" rough‑terrain tyres allow the RT series to operate on mud, gravel, slopes, and uneven surfaces where conventional lifts cannot go.
The RT series is powered by the Kubota V2403 diesel engine, delivering 36 kW (48.3 HP) of reliable, high‑torque performance with a 110L fuel tank for extended operation between refuels.
Yes. The 1023RT and 1323RT support driving at full platform elevation. The 1623RT supports driving at heights up to 9 metres, allowing efficient repositioning without lowering the platform.
Standard safety features include emergency stops (platform and ground), automatic leveling outriggers, overload protection, descent alarm, tilt detection, motion alarm, flashing beacons, and proportional joystick control.
Options include foam‑filled puncture‑proof tyres, cold weather starting kit, platform AC power outlet, air line to platform, pipe cradle, LED lighting package, and custom machine colours.
