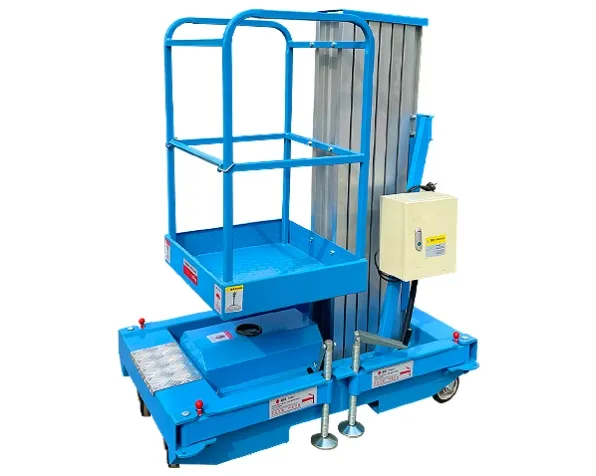

Vertical Mast Lift
Single mast aluminim ladder vertical mast lift
Our GTWY Series single mast lift is the ultimate push around vertical mast lift designed for maintenance, warehousing, retail, and industrial applications.
Specifications
- working height:
- 6-12 meter
- load capacity
- 125kg
- model
- GTWYA series

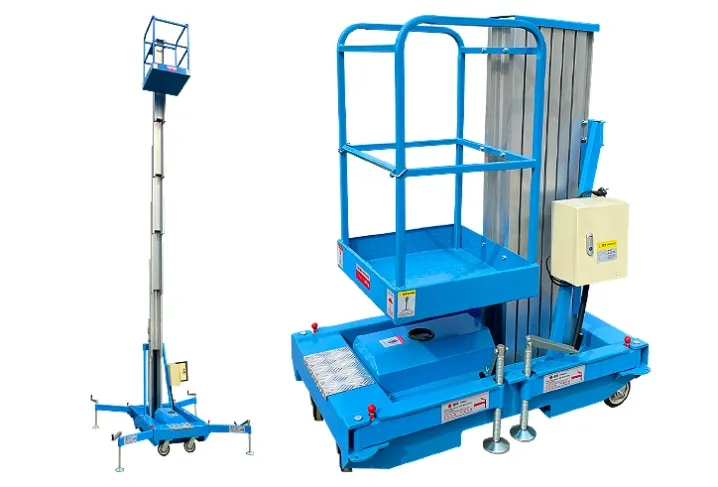

Single Mast Push Around Vertical Mast Lift GTWY100A Series | Compact Aerial Work Platform
Ideal for confined spaces & single-person operation — combines portability, hydraulic reliability, and aviation aluminum strength.
Powerful, light & easy to maneuver — Our GTWY Series single mast lift is the ultimate push around vertical mast lift designed for maintenance, warehousing, retail, and industrial applications. With a robust high-strength aluminium mast and dual hydraulic transmission, this portable lift provides a stable working platform up to 12m working height. Available in AC electric or DC battery versions, it fulfills the role of both electric lift and hydraulic lift while being a reliable manlift for indoor/outdoor use.
As a true access platform and aerial lift, it replaces traditional aluminum ladder work with unmatched safety. Compact dimensions, rotating casters and outriggers ensure stability on uneven ground. Certified with emergency descent system, leakage protection and dual controls — your ideal platform lift and vertical lift solution.
125kg rated load Platform: 4–10m AC 220V / DC optional Lightweight from 230kg (AC)
Key applications
Warehouse picking
Facility maintenance
Retail / exhibition setup
Electrical & HVAC work
Narrow aisle operations
CE compliant & ISO8434-1 hydraulic hoses
Superior Features & Advantages
Synchronized Mast Lifting
All mast sections lift simultaneously for exceptional stability during rise and descent. High-strength aviation aluminum ensures operator safety — perfect aerial lift for demanding tasks.
Integrated Slider Technology
Proprietary integral built-in slider reduces dynamic clearance, providing smoother and more reliable operation than traditional guide wheels. Superior ride quality as a vertical lift platform.
Four-Wheel Rolling Chassis
Easily walks around tight corners and crowded workspaces. Manoeuvrable like a manual lift, yet powered hydraulic action when needed. Push-around design reduces fatigue.
Level Gauge + Suction Legs
Integrated spirit level and screw stabilisers (outriggers) offer solid ground support even on uneven surfaces — essential for a portable lift operating safely.
Dual Control & Emergency Stop
Platform and ground dual control switches with emergency stop button, plus upper/lower limit switches for total safety. All button boxes waterproof.
Emergency Descent Device
Manual emergency lowering valve under platform ensures slow descent even during power loss — extra peace of mind for any working platform.
High-Pressure Steel Wire Hoses
ISO8434-1 certified hoses with burst pressure far above system limits. Pipeline rupture check valve prevents accidental platform fall.
Safe Electrical System
Leakage protection, extreme electrical limit switches, and emergency stop integrated. Reliable operation for both electric lift and battery versions.
Compact & Single-Person Friendly
Lightweight design (230-420kg) and narrow width (as low as 800mm) — an excellent small lift for confined access. Ideal as a single mast lift for solo operators.
Technical Specifications – GTWY Series
Model | GTWY4-100A | GTWY5-100A | GTWY6-100A | GTWY8-100A | GTWY9-100A | GTWY10-100A |
|---|---|---|---|---|---|---|
Max. Platform Height (mm) | 4000 | 5000 | 6000 | 8000 | 9000 | 10000 |
Max. Working Height (mm) | 6000 | 7000 | 8000 | 10000 | 11000 | 11700 |
Ground Clearance (mm) | 80 (all models) | |||||
Rated Load (kg) | 125-150 | 125-150 | 125-150 | 125-150 | 125 | 125 |
Platform Size (L×W mm) | 640 × 580 | |||||
Outrigger Size (mm) | 1600×1700 | 1650×1750 | 1650×1750 | 1650×1750 | 1990×1880 | 1940×1980 |
Overall Length (mm) | 1200 | 1300 | 1300 | 1300 | 1420 | 1510 |
Overall Width (mm) | 800 | 800 | 800 | 800 | 850 | 850 |
Overall Height (stowed) mm | 1650 | 1650 | 1650 | 1980 | 1980 | 1980 |
Weight (AC version) kg | 230 | 280 | 295 | 325 | 345 | 380 |
Weight (DC version) kg | 270 | 320 | 335 | 365 | 385 | 420 |
Power Options: AC 220V/50Hz (standard) / DC 12V or 24V battery (optional)Battery pack: 12V (single 60Ah) or 24V (two 60Ah batteries)Charger: 12V or 24V smart charger availableLifting motor: AC 0.75kW / DC 0.8kW – smooth, reliable hydraulic power
Engineered for safety & long service life
Hydraulic system – integral pump station with emergency descent and anti-rupture valve.Chassis – 4mm iron plate bending/welding, locking pins for outriggers, robust base.Weather protection – waterproof button boxes, leakage protection, extreme limit switches.
Hydraulic & Mobility Details
Specification | Details / Value |
|---|---|
Transmission Mechanism | Hydraulic cylinder + plate chain (double transmission) |
Mast Material | High-strength aviation aluminum (single set) — excellent for aluminum ladder replacement |
Steering/Wheels | Four swivel casters plus push handle, maneuverable push around vertical lift style |
Leveling System | Suction cup leveling legs + visible level gauge |
Emergency Lowering | Standard mechanical descent valve (no power required) |
Safety Valves | Pipe rupture check valve, overload protection, emergency stop |
Platform Control | Upper/lower dual control with waterproof membrane switches |
Why the GTWY single mast lift outperforms conventional lifts?
Whether you need a hydraulic ladder for warehouse tasks, a manlift for construction, or a vertical lift for maintenance, the single mast design combines portable lift convenience with rigid aerial performance. The push around platform lift can be easily relocated by one person. With AC electric and DC models, it serves as a true electric lift that's both eco-friendly and powerful. Available in working heights from 6m to 12m, this small lift fits through standard doorways and elevators. It's the modern upgrade to aluminum ladder based work at height.
Applications & Use Cases
The GTWY-100 series single mast vertical mast lift is widely used in a variety of indoor and outdoor environments where compact design and reliable vertical access are required. Common applications include:
🏭 Factory & Warehouse Maintenance
Overhead equipment servicing, light fixture replacement, inventory access
🏢 Commercial Buildings
Facility maintenance, HVAC servicing, ceiling repairs
🛒 Retail & Shopping Malls
Display installation, signage maintenance, lighting replacement
✈️ Airports & Train Stations
Ceiling maintenance, signage access, facility repairs
🏨 Hotels & Theaters
Auditorium lighting, decoration, event setup
🔧 Electrical & Communications
Cable installation, telecommunications tower access, electrical panel maintenance
Frequently Asked Questions (FAQ)
- What is a single mast vertical mast lift? A single mast vertical mast lift is a compact aerial work platform that uses a single telescopic aluminum mast to raise a platform vertically. It is designed for single-person operation in confined spaces where traditional scissor lifts cannot fit.
- What is the maximum working height of GTWY-100 series? The GTWY-100 series offers working heights ranging from 6m (GTWY4-100) to 12m (GTWY10-100). Platform heights range from 4m to 10m depending on the chosen model.
- Can the lift be used outdoors? Yes, the GTWY-100 series is designed for both indoor and outdoor use. However, it should be used on firm, level ground with outriggers properly deployed. Outdoor usage in windy conditions should be assessed based on local safety guidelines.
- What power options are available? The GTWY-100 series offers AC power (220V/50Hz) as standard, with optional DC power using 12V or 24V battery systems. DC-powered units are ideal for locations where electrical outlets are not readily available.
- How much does the single mast vertical lift weigh? Machine weight varies by model and power source: AC units range from 230kg to 380kg; DC units range from 270kg to 420kg. The lightweight aluminum construction makes it easy to maneuver by a single operator.
- What safety features are included? Safety features include emergency stop switches, emergency descent device, leakage protection switch, electrical limit switches, anti-pipeline rupture valve, and outrigger locking pins for stability.
- Is the platform height adjustable? Yes, the GTWY-100 series offers models with platform heights of 4m, 5m, 6m, 8m, 9m, and 10m. Choose the model that best matches your working height requirements.
