Vertical Mast Lift
Single mast push around vertical mast lift
. Rated load: 125kg . Platform height: 4-10m . Working height: 6-12m
Specifications
- working height:
- 6-12 meter
- load capacity
- 125kg
- model
- GTWYA series

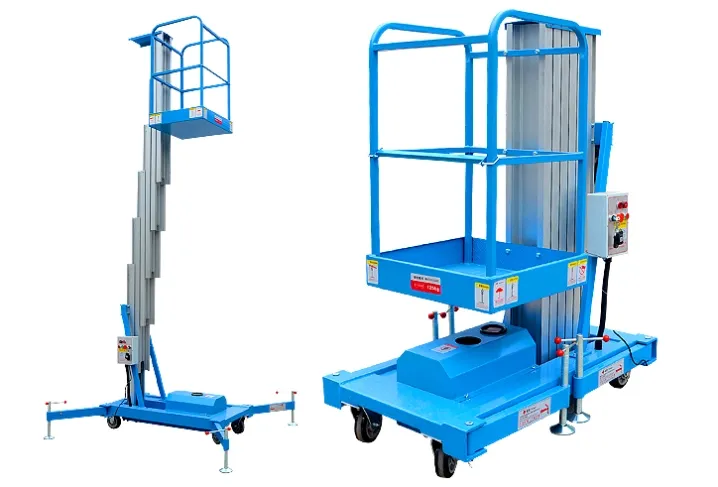

Outstrip GTWY100A Series Single Mast Push Around Vertical Mast Lift
🔄 Push‑Around | Single Mast
📐 4–10m Platform Height (up to 12m working)
⚖️ 125–150kg Rated Load
🔌 AC 220V or DC 12V/24V Battery
📦 Compact 800mm Width
🛡️ CE Compliant + ISO Hoses
The Outstrip GTWY100A Series is a single mast push around vertical mast lift engineered for safe, efficient one‑person aerial work in confined spaces. Offering platform heights from 4 to 10 metres (working height up to 12 metres) and a rated load of 125–150 kg, this compact portable lift combines the convenience of a push‑around design with the stability of a high‑strength aviation aluminium mast and dual hydraulic transmission. Available in AC 220V/50Hz or DC 12V/24V battery versions, it serves as both an electric lift and a reliable hydraulic manlift for indoor maintenance, warehousing, retail setup, and industrial facility tasks. Certified to CE standards and fitted with ISO8434‑1 high‑pressure hoses, the GTWY100A is the modern, safe upgrade from traditional aluminium ladder work at height.
🏢 Key Applications
- Warehouse picking & inventory management
- Facility maintenance & equipment inspection
- Retail store setup & exhibition installation
- Electrical & HVAC system servicing
- Narrow aisle operations in factories and distribution centres
- Ceiling repairs, lighting replacement, and pipework access
🔧 Superior Features & Advantages
- 🏗️ Synchronized Mast Lifting – All mast sections lift simultaneously for exceptional stability during rise and descent. High‑strength aviation aluminium ensures operator safety.
- ⚙️ Integrated Slider Technology – Proprietary built‑in slider reduces dynamic clearance, providing smoother and more reliable operation than traditional guide wheels.
- 🔄 Four‑Wheel Rolling Chassis – Easily manoeuvres around tight corners and crowded workspaces. Push‑around design reduces operator fatigue.
- 📐 Level Gauge + Suction Legs – Integrated spirit level and screw stabilisers (outriggers) offer solid ground support even on uneven surfaces.
- 🎮 Dual Control & Emergency Stop – Platform and ground dual control switches with emergency stop buttons, plus upper/lower limit switches for total safety.
- 🛑 Emergency Descent Device – Manual emergency lowering valve under the platform ensures slow descent even during power loss.
- 🔩 High‑Pressure Steel Wire Hoses – ISO8434‑1 certified hoses with burst pressure far above system limits. Pipeline rupture check valve prevents accidental platform fall.
- 🔋 Safe Electrical System – Leakage protection, extreme electrical limit switches, and emergency stop integrated. Reliable for both AC and battery versions.
- 📦 Compact & Single‑Person Friendly – Lightweight design (230–420 kg) and narrow width (as low as 800 mm) – ideal for confined access and solo operators.
📋 Technical Specifications – GTWY100A Series
| Model | GTWY4-100A | GTWY5-100A | GTWY6-100A | GTWY8-100A | GTWY9-100A | GTWY10-100A |
| Max. Platform Height (mm) | 4000 | 5000 | 6000 | 8000 | 9000 | 10000 |
| Max. Working Height (mm) | 5700 | 6700 | 7700 | 9700 | 10700 | 11700 |
| Ground Clearance (mm) | 80 (all models) | |||||
| Rated Load (kg) | 125–150 | 125–150 | 125–150 | 125–150 | 125 | 125 |
| Platform Size (L×W mm) | 640 × 580 | |||||
| Outrigger Size (mm) | 1600×1700 | 1650×1750 | 1650×1750 | 1650×1750 | 1990×1880 | 1940×1980 |
| Overall Length (mm) | 1200 | 1300 | 1300 | 1300 | 1420 | 1510 |
| Overall Width (mm) | 800 | 850 | ||||
| Overall Height (stowed) mm | 1650 | 1650 | 1650 | 1980 | 1980 | 1980 |
| Weight (AC version) kg | 230 | 280 | 295 | 325 | 345 | 380 |
| Weight (DC version) kg | 270 | 320 | 335 | 365 | 385 | 420 |
🔋 Power Options & Hydraulic System
- Power Supply: AC 220V/50Hz (standard) / DC 12V or 24V battery (optional)
- Battery Pack: 12V (single 60Ah) or 24V (two 60Ah batteries)
- Charger: 12V or 24V smart charger available
- Lifting Motor: AC 0.75kW / DC 0.8kW – smooth, reliable hydraulic power
- Transmission: Hydraulic cylinder + plate chain (double transmission)
- Mast Material: High‑strength aviation aluminium (single set)
- Steering/Wheels: Four swivel casters plus push handle – true push‑around vertical lift style
- Levelling: Suction cup levelling legs + visible spirit level gauge
- Emergency Lowering: Standard mechanical descent valve (no power required)
- Safety Valves: Pipe rupture check valve, overload protection, emergency stop
- Platform Control: Upper/lower dual control with waterproof membrane switches
✅ Why the GTWY100A Outperforms Conventional Lifts
- True portable lift convenience – easily relocated by a single operator, fits through standard doorways and elevators.
- Dual power flexibility – choose AC electric for continuous use or DC battery for cordless, quiet operation.
- CE certified with ISO8434‑1 high‑pressure hoses and fully tested safety components.
- Robust construction – 4mm iron plate chassis, locking outrigger pins, and weather‑proof electrical enclosures.
- Cost‑effective upgrade from aluminium ladders – reduces fall risk and increases productivity.
- Global support and OEM customisation options from Outstrip Industrial.
📌 Disclaimer: Specifications are subject to change without notice.
Different power configurations and platform customisations are available upon request.
For the latest details, custom quotes, or volume pricing, please contact Outstrip Industrial.
