Aerial Order Picker
SP60 Self Propelled Aerial Order Picker with 4m lifting height
1. Carrying one person with weight less than 136kg capacity up to 4m height. 2. Electric move, Electric lift, 2 × 12 V/150 Ah battery, free maintenance. 3. 110-220 V Build-in charger solution, 8 hrs charging time 4. Turning radius: 55’’ , 15% Grade-ability 5. Wheel type: Non-marking, Anti-Skid Solid Rubber 6. Drive motor: 0.8-1.2 KW, Driving speed: from 1 to 3.36 mph with choice. 7. Product weight: 635kgs 8. Ground clearance: 57mm
⚡ NEW | Self Propelled Aerial Work

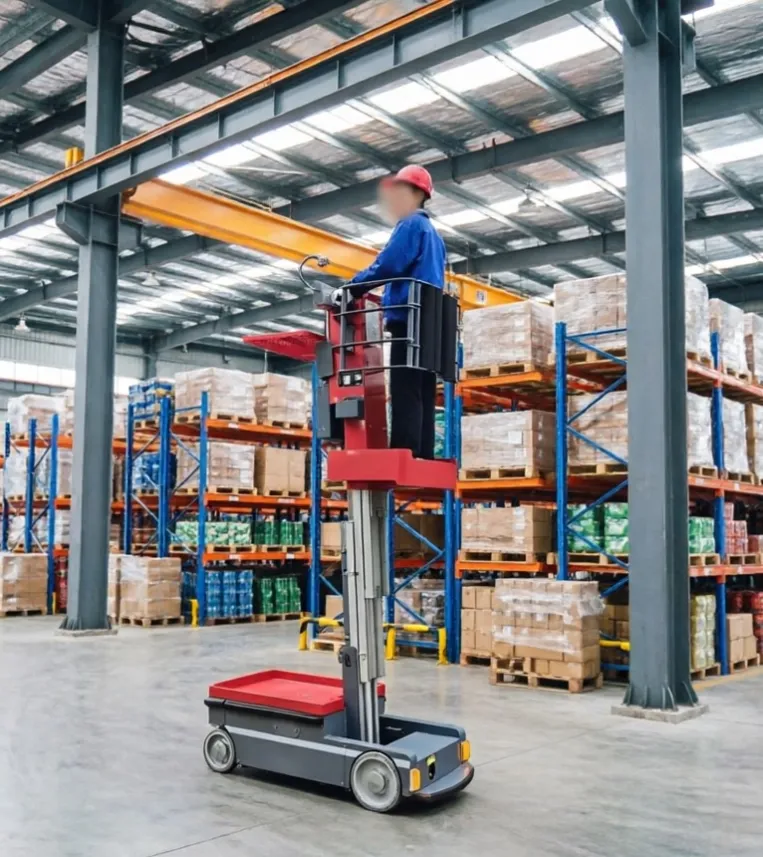

SP60 Self Propelled Aerial Order Picker
Model: SP60 | 136kg Operator Capacity | 4m Lifting Height (6m Working Height)
The SP60 is a high-performance self-propelled electric order picker engineered for aerial picking tasks up to 6 meters working height. With aircraft-grade aluminum alloy mast, active front steering + rear drive, and intelligent driving assistance, it ensures safety and productivity in warehouses, distribution centers, and retail backrooms.
🔼 4m Platform Height 🔄 Active Steering + Rear Drive ⚙️ Proportional Control
🔋 250 lifts + 8.5km endurance 🧰 Removable Toolbox ✅ CE Certified | Global Support
Key Advantages – SP60
🏗️
High-strength Aluminum Alloy Mast
Aircraft-grade aluminum elevating mechanism ensures smooth and stable raising/lowering, ideal for repetitive high-frequency operation.
🚜
Active Front Steering + Rear Bridge Drive
Avoids direction loss on uneven ground; superior walking performance and maneuverability even with full load.
🧠
Intelligent Driving Assistance
Steering wheel automatically returns to center when released – reduces operator effort, increases reaction speed.
🎮
Ergonomic Proportional Control
Proportional valve handles deliver smooth, accurate driving and lifting control, minimizing fatigue during long shifts.
💡
LED Auxiliary Work Lights
Integrated LED lighting improves visibility in dim warehouses, enhancing safety during night shifts or low-light conditions.
🧰
Removable Tool Box
Convenient detachable toolbox for storing hand tools, tape, or picking accessories – always within reach.
Technical Specifications – SP60
Model | SP60 |
|---|---|
📐 DIMENSIONS | |
Max. Platform Height | 4000mm (4.0m) |
Max. Working Height | 6000mm (6.0m) |
Platform Size (L×W) | 696 × 564 mm |
Platform Entry Height | 350 mm |
Occupants (Platform) | 1 person |
Stowed Length × Width × Height | 1660 × 750 × 1528 mm |
Machine Weight (reference) | 635 kg |
⚖️ LOAD CAPACITIES | |
Operator Compartment Capacity | 136 kg |
Powered Cargo Shelf Capacity | 60 kg |
Ground Cargo Shelf Capacity | 85 kg |
🚀 PERFORMANCE | |
Moving Method | Self Propelled (Electric) |
Drive Speed (Level 1/2/3) | 5.4 km/h / 3.2 km/h / 1.6 km/h |
Driving System | Proportional Joystick |
Platform Cycle Time (Raise/Lower) | Raise 18 sec / Lower 20 sec |
Max. Steering Angle | 80° |
Turning Radius (Outside / Inside) | 1.8 m / ~0 m |
Climb Ability | 15% (gradeability) |
Max. Allowed Wind Speed | 12.5 m/s |
Rated Oil Pressure | 10 MPa |
Maximum Horizontal Lateral Force | 200 Newtons |
Tires | Non-marking, Anti-Skid Solid Rubber |
Battery Durable Time | 250 lifting cycles + 8.5 km driving |
🔋 POWER SOURCE | |
Power Supply | DC 24V |
Power Input | 0.8 – 1.2 kW |
Battery | 12V / 150Ah × 2 pieces (24V system) |
Recharge Power Supply | 220V AC or 110V AC (universal charging) |
* Product specifications are subject to change without notice. Contact Outstrip for custom configurations.
